Brake Light Switch

The electronic brake light switch supplies important information in hall effect format to the ABS control unit.

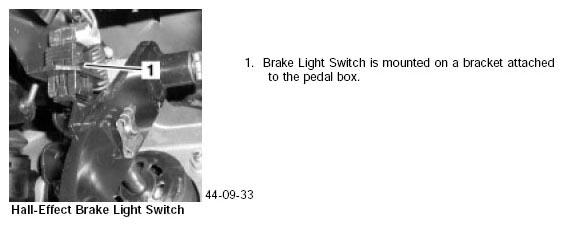

Fig 1: Hall-Effect Brake Light Switch
G04725170Courtesy of BMW OF NORTH AMERICA, INC.
