Mission Control (M65 02 10)

Publication date: 2010-02-09
Reference number: M65 02 10

MISSION CONTROL

TECHNICAL SERVICE BULLETIN

Reference Number(s): SI M65 02 10, Date of Issue: February 2010

MINI:	R56 (Cooper, Cooper S); with option 7HB (Camden Package) and without option 609 (Navigation System Professional)
GROUP:	Audio, Navigation, Monitors, Alarms, SRS

SUBJECT

Mission Control

INFORMATION

The Mission Control system provides the driver with a variety of advice, as well as situation-related, environmental, and car condition information, in a typically entertaining MINI way. The feature gives the driver the impression of directly interacting with the vehicle, and gives the vehicle its own personality.

NOTE: The voice can be turned off by the customer when desired.

For more information, refer to the Owner's Manual (attachment A).

IMPORTANT: The Mission Control system cannot be diagnosed using the BMW Group diagnosis system. If the system is inoperative, check the following:

The on/off switch in the glove compartment is switched on, and the green LED is on (refer to attachment A).
If the LED is flashing, the SD card is not being read. Remove and reinstall the SD card.
For wiring-related issues, check the wiring (see the wiring diagram in attachment B).
For the Mission Control module, test by substitution.

WARRANTY INFORMATION

For information only.

ATTACHMENTS

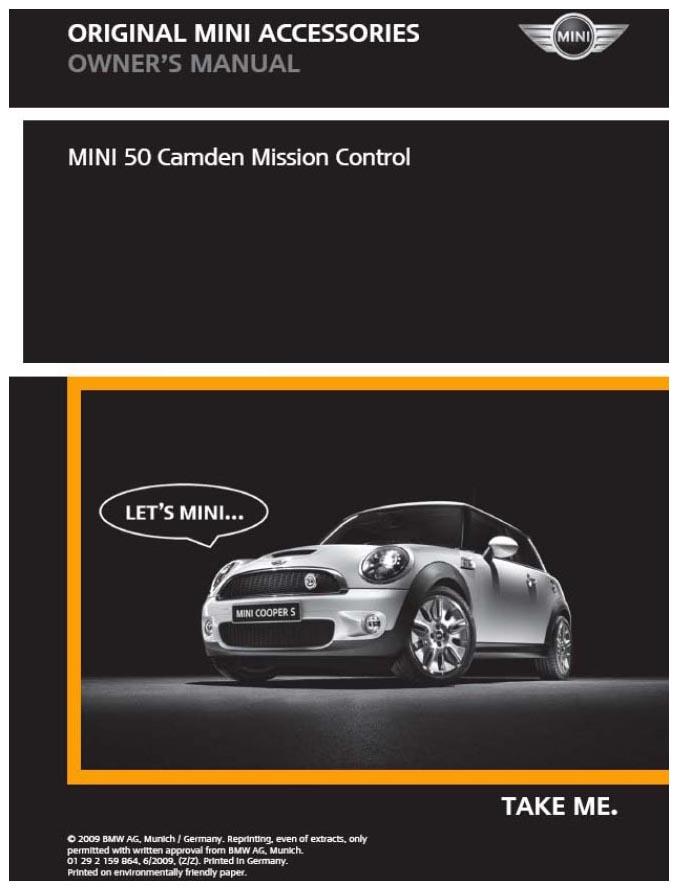

Fig 1: Attachment A - Mission Control System Owner's Manual

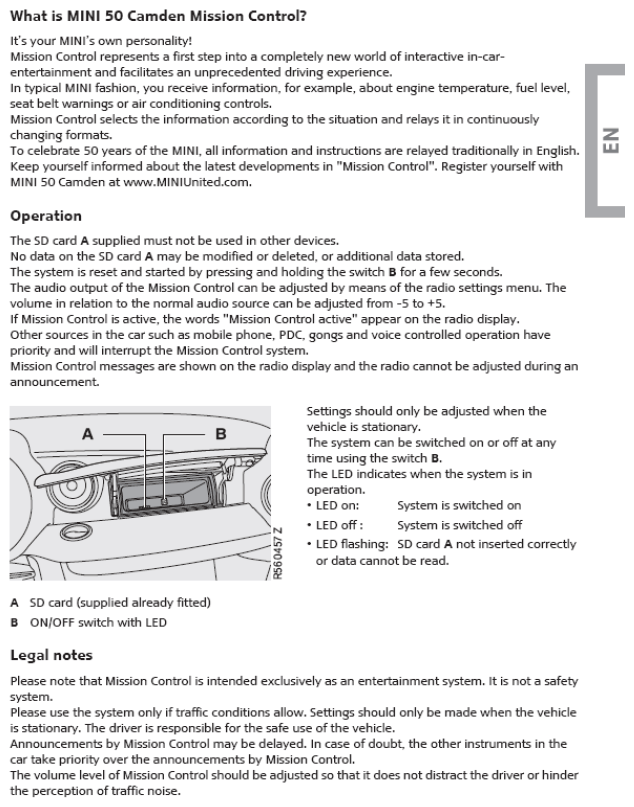

Fig 2: Attachment A - Mission Control System Owner's Manual

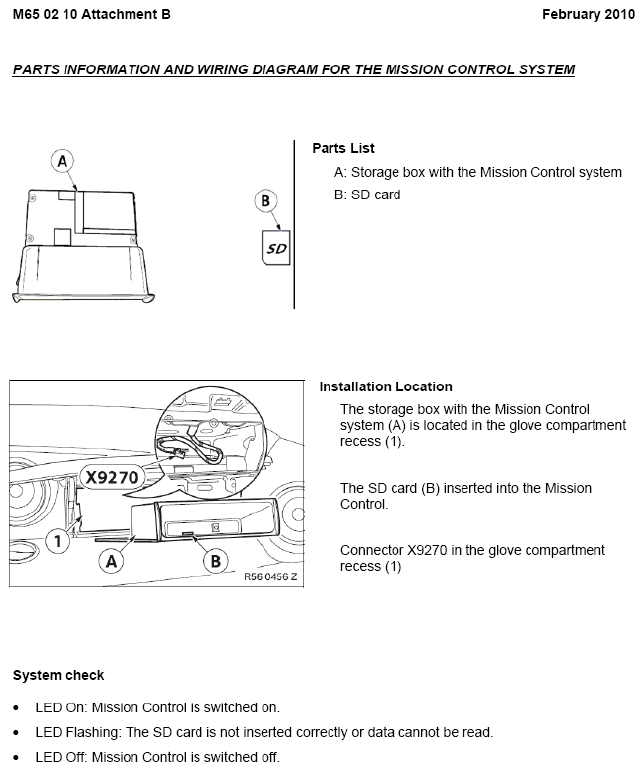

Fig 3: Attachment B - Parts Information And Wiring Diagram For Mission Control System

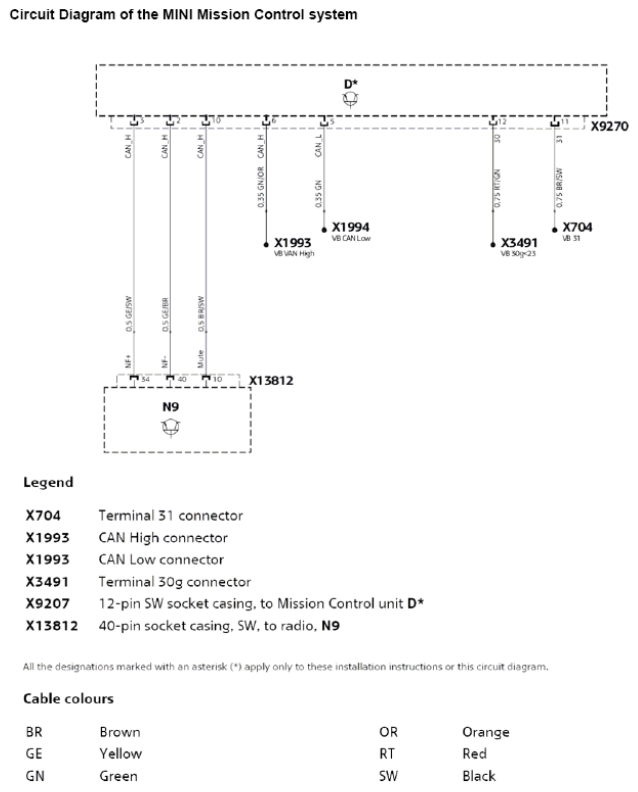

Fig 4: Attachment B - Parts Information And Wiring Diagram For Mission Control System
