Check Control Messages (M62 01 07)

Publication date: 2007-03-14
Reference number: M62 01 07

CHECK CONTROL MESSAGES

TECHNICAL SERVICE BULLETIN

Reference Number(s): SI M62 01 07, Date of Issue: March 14, 2007

MINI:	R56 (Cooper, Cooper S)
GROUP:	Instruments

SUBJECT

Check Control Messages

INFORMATION

In situations where the customer complains of a check control (CC) message, but the message is currently not displayed, the last (72) CC messages are stored in the instrument cluster and can be viewed using DIS V49.0, or later. (Note: Only important messages are stored. Messages concerning e.g. door open, are not stored.)

To view stored CC messages, from the Diagnosis Operation and Component Selection screen, select "Service Functions/Vehicle Information/Check Control Messages/Test Plan" . Follow the on-screen prompts to run the test plan. Each stored CC message can be displayed together with its identification number and the vehicle mileage when it was stored.

The attachment lists all possible CC messages with a description of each.

WARRANTY INFORMATION

Information only.

ATTACHMENTS

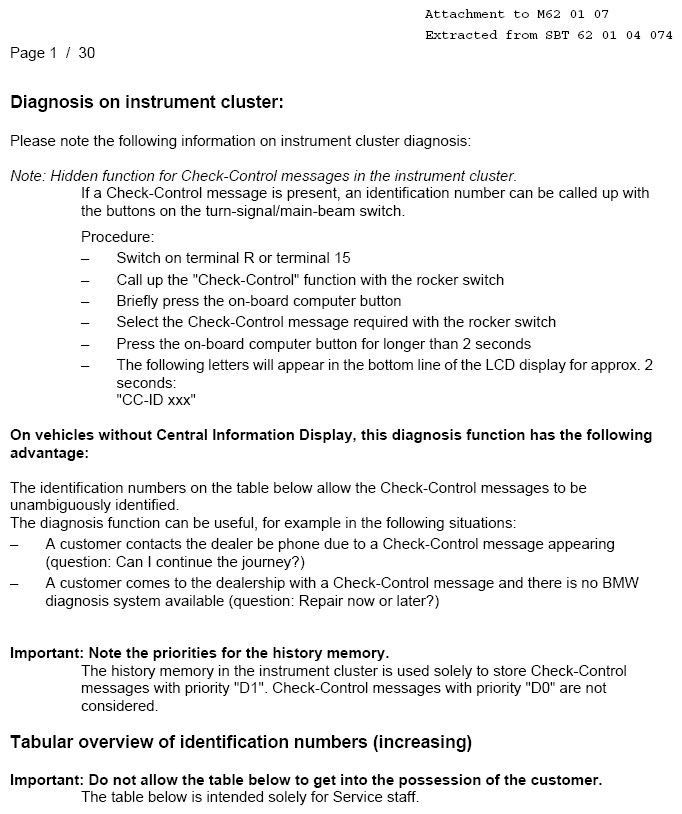

Fig 1: Instrument Cluster Diagnosis/Check-Control Messages (Page 1)

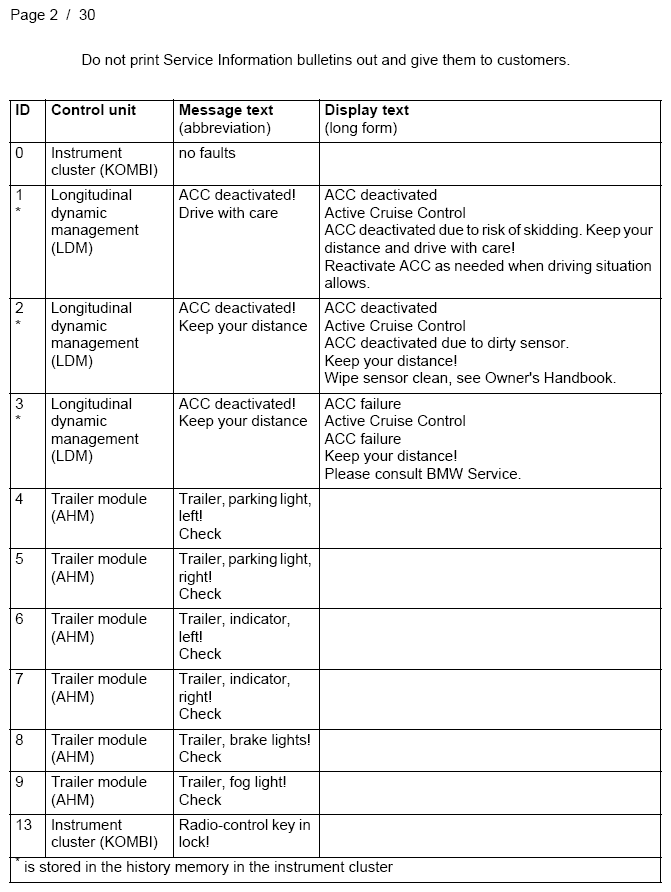

Fig 2: Instrument Cluster Diagnosis/Check-Control Messages (Page 2)

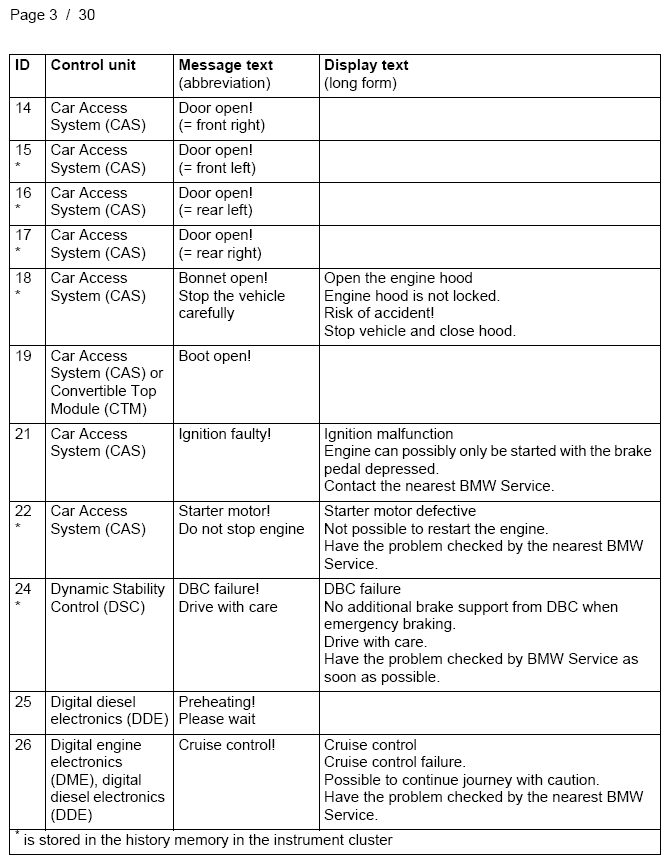

Fig 3: Instrument Cluster Diagnosis/Check-Control Messages (Page 3)

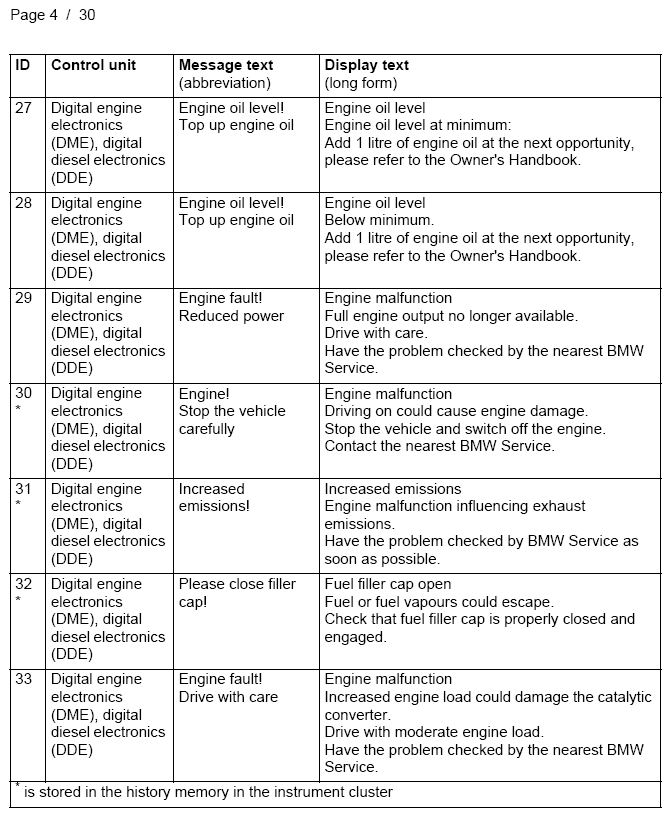

Fig 4: Instrument Cluster Diagnosis/Check-Control Messages (Page 4)

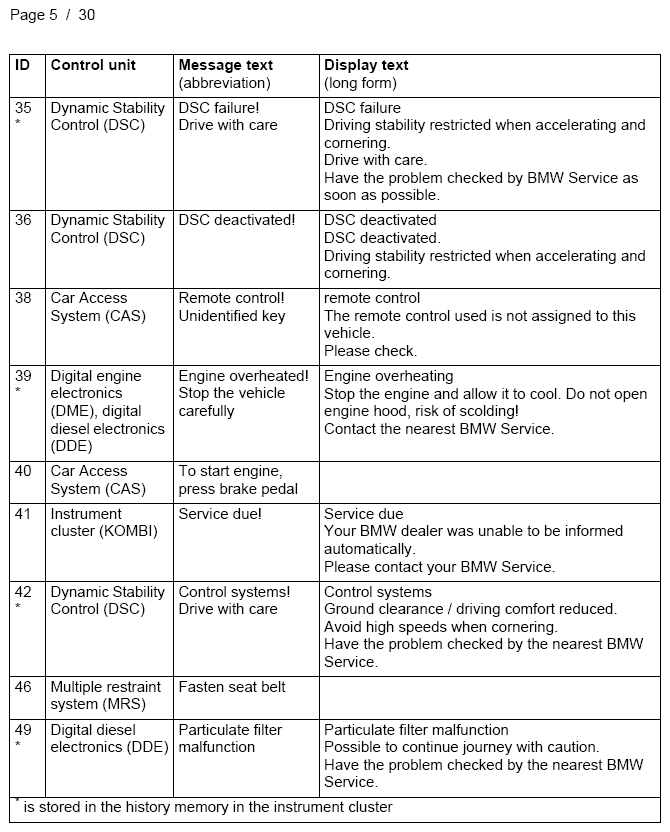

Fig 5: Instrument Cluster Diagnosis/Check-Control Messages (Page 5)

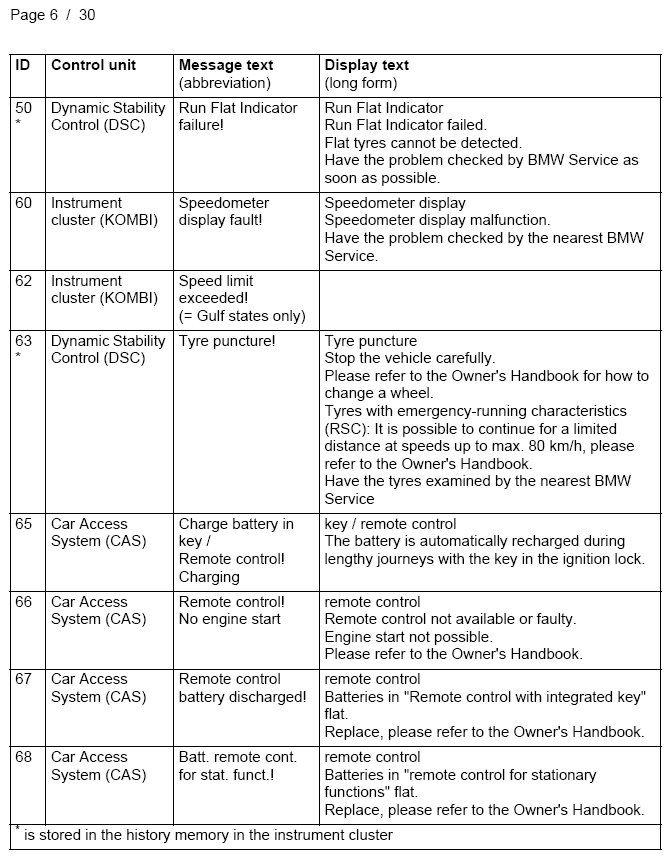

Fig 6: Instrument Cluster Diagnosis/Check-Control Messages (Page 6)

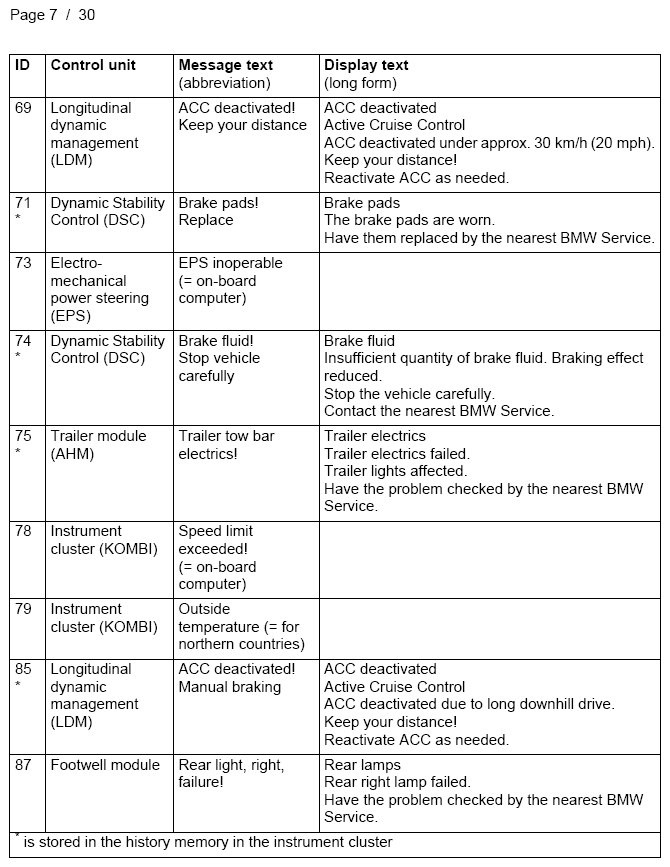

Fig 7: Instrument Cluster Diagnosis/Check-Control Messages (Page 7)

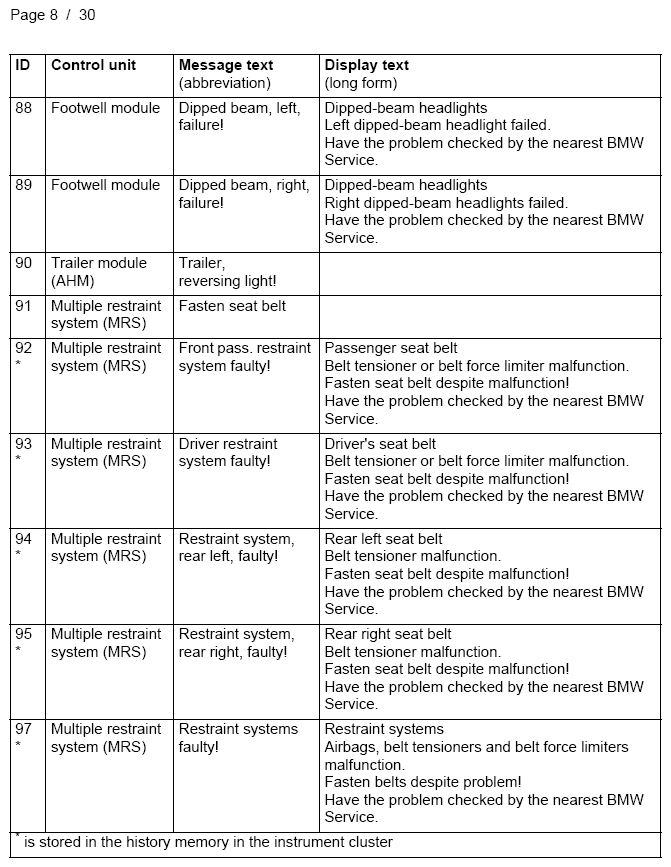

Fig 8: Instrument Cluster Diagnosis/Check-Control Messages (Page 8)

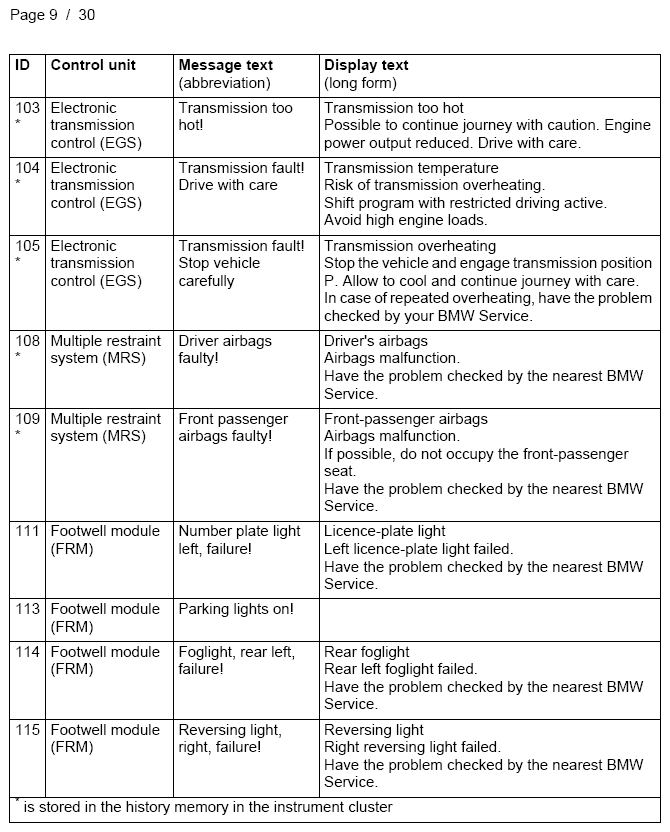

Fig 9: Instrument Cluster Diagnosis/Check-Control Messages (Page 9)

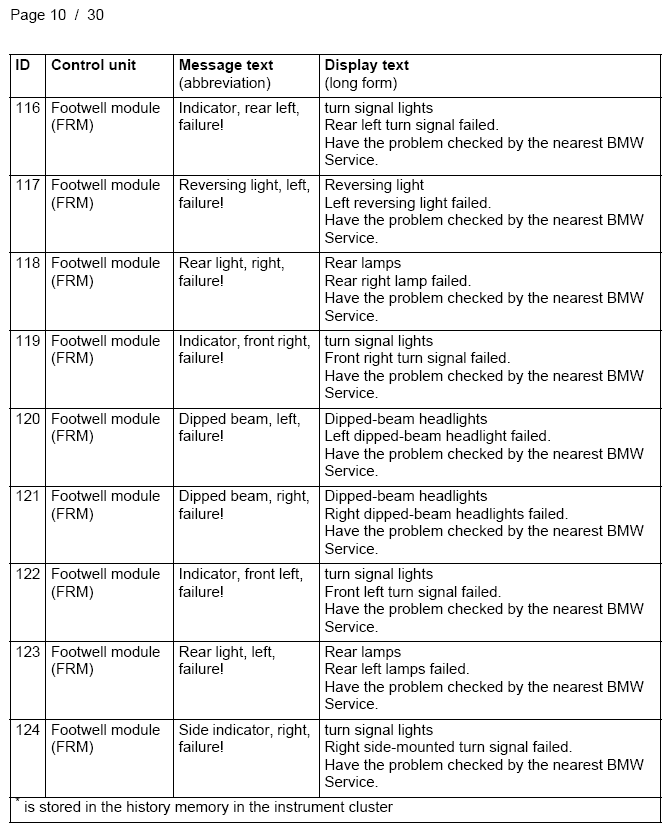

Fig 10: Instrument Cluster Diagnosis/Check-Control Messages (Page 10)

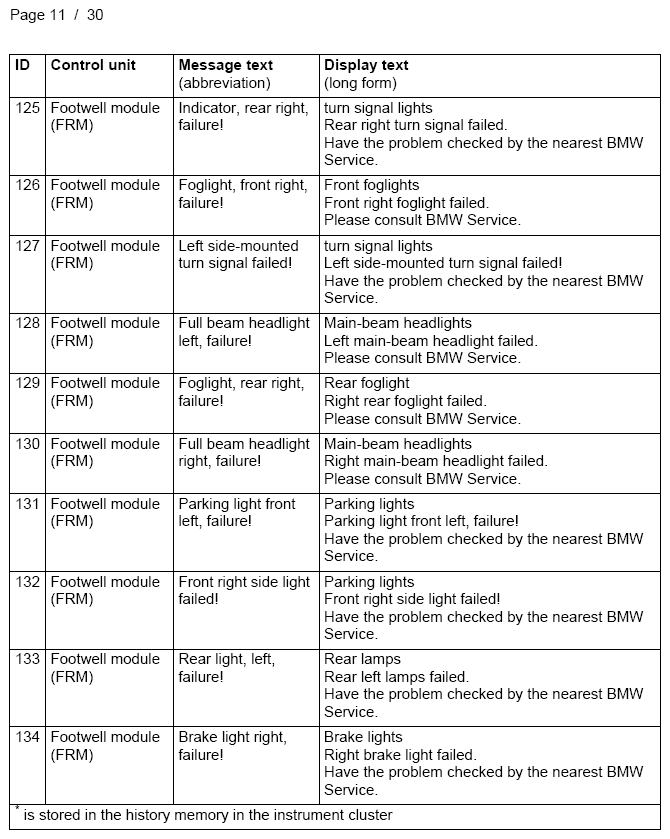

Fig 11: Instrument Cluster Diagnosis/Check-Control Messages (Page 11)

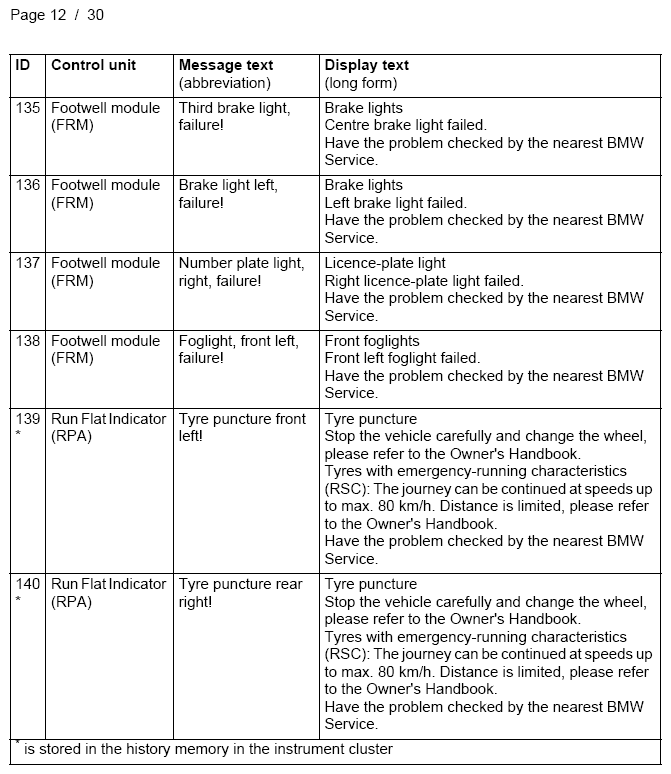

Fig 12: Instrument Cluster Diagnosis/Check-Control Messages (Page 12)

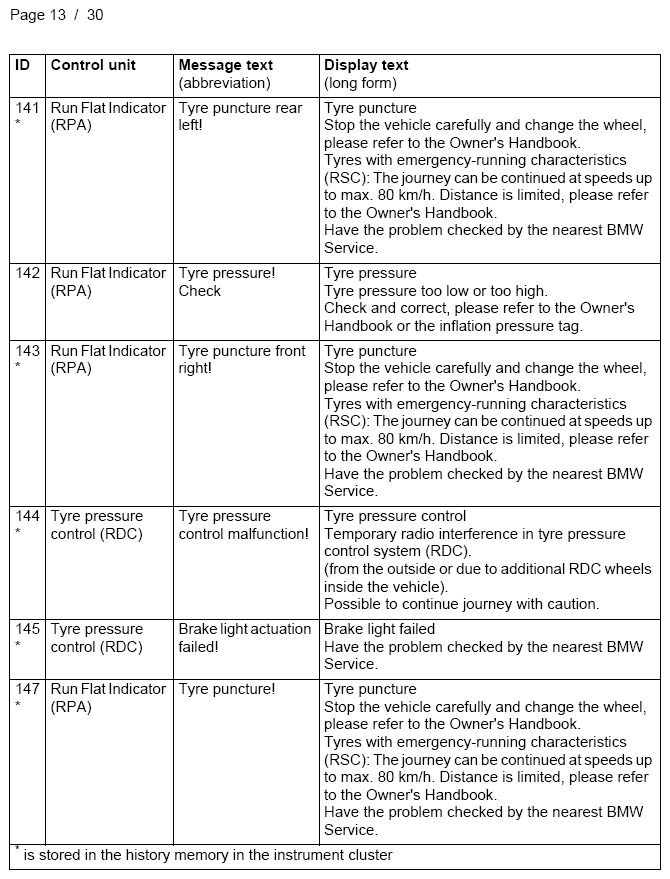

Fig 13: Instrument Cluster Diagnosis/Check-Control Messages (Page 13)

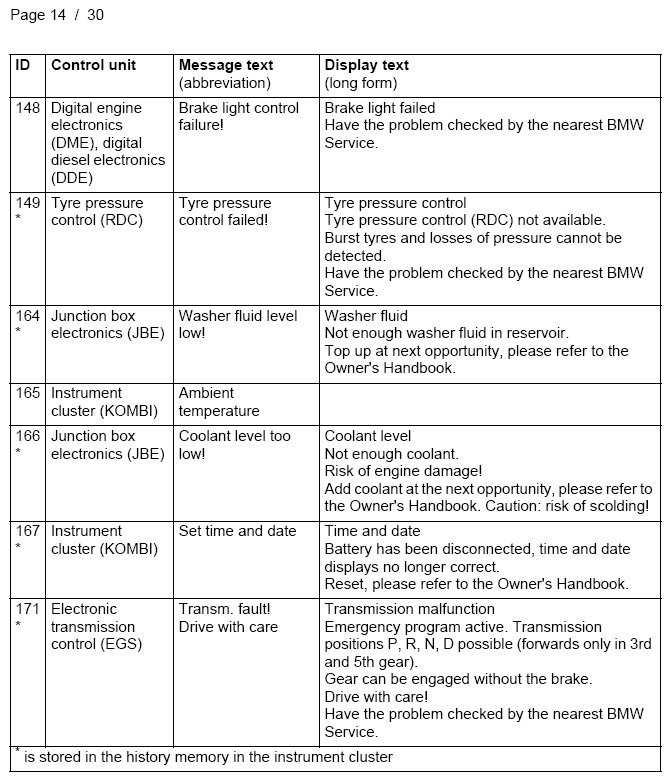

Fig 14: Instrument Cluster Diagnosis/Check-Control Messages (Page 14)

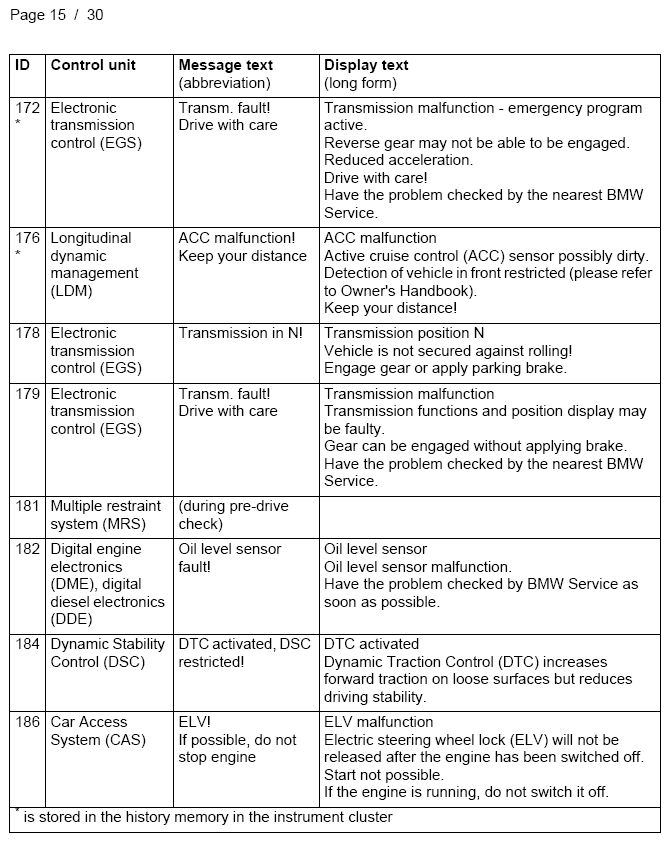

Fig 15: Instrument Cluster Diagnosis/Check-Control Messages (Page 15)

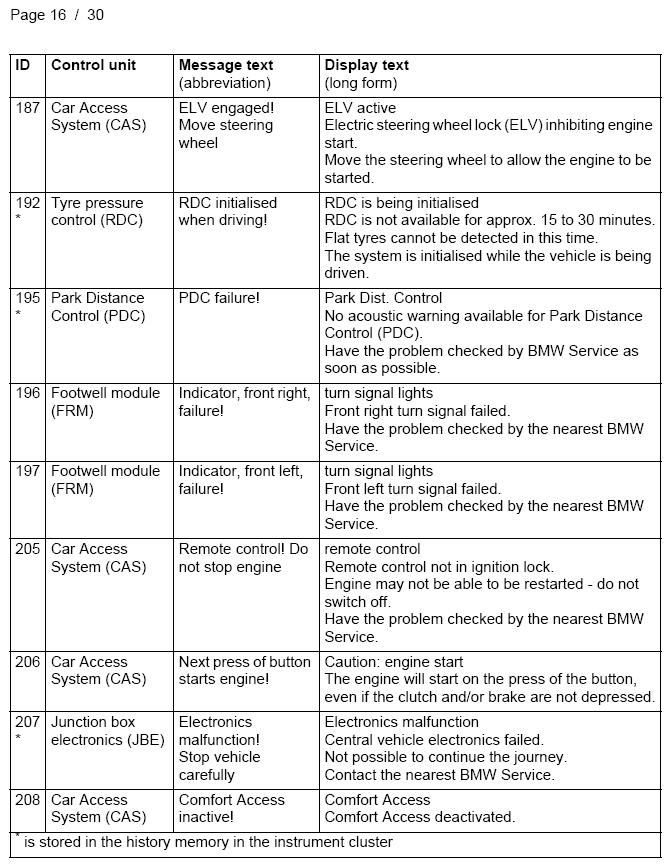

Fig 16: Instrument Cluster Diagnosis/Check-Control Messages (Page 16)

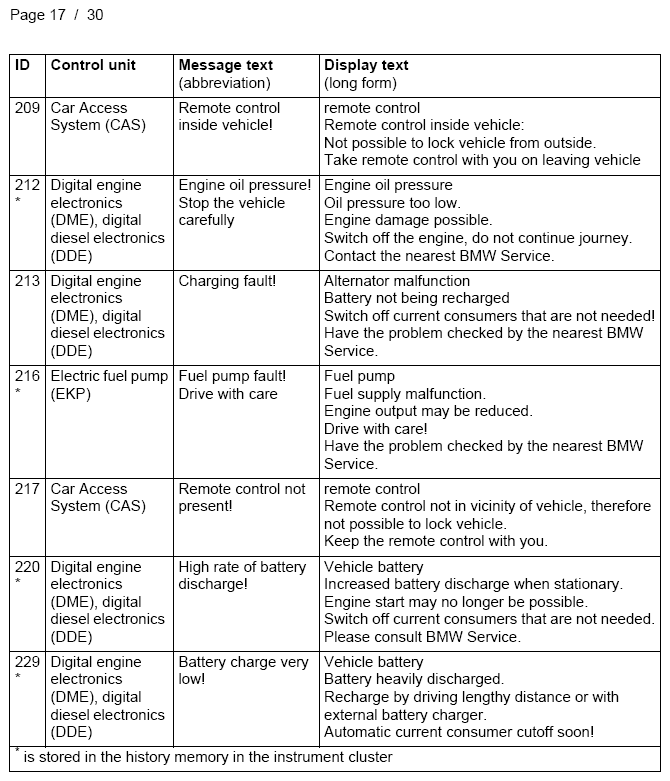

Fig 17: Instrument Cluster Diagnosis/Check-Control Messages (Page 17)

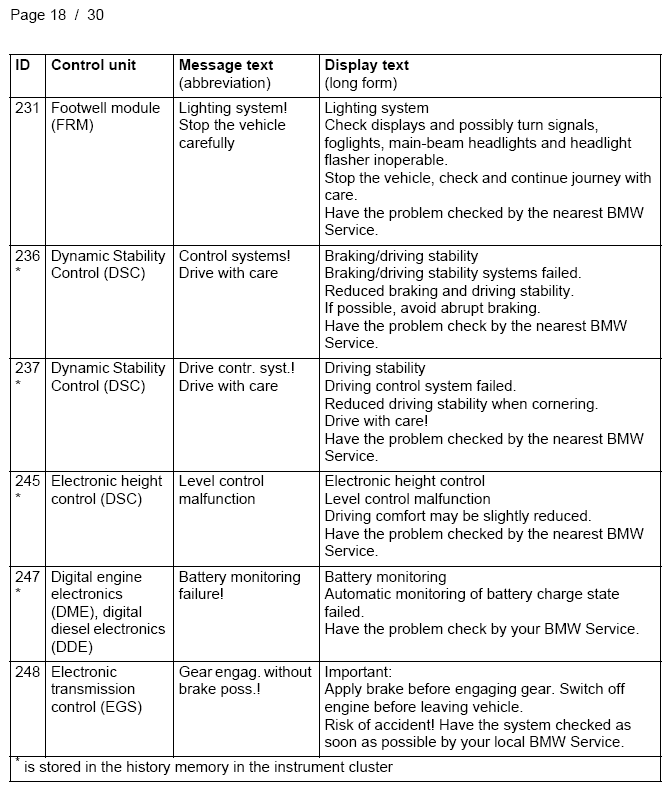

Fig 18: Instrument Cluster Diagnosis/Check-Control Messages (Page 18)

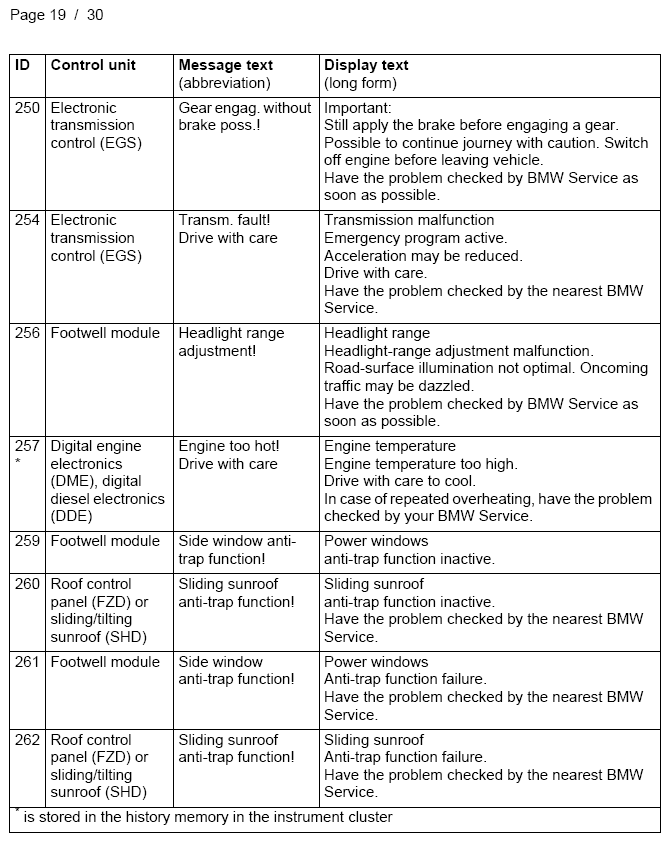

Fig 19: Instrument Cluster Diagnosis/Check-Control Messages (Page 19)

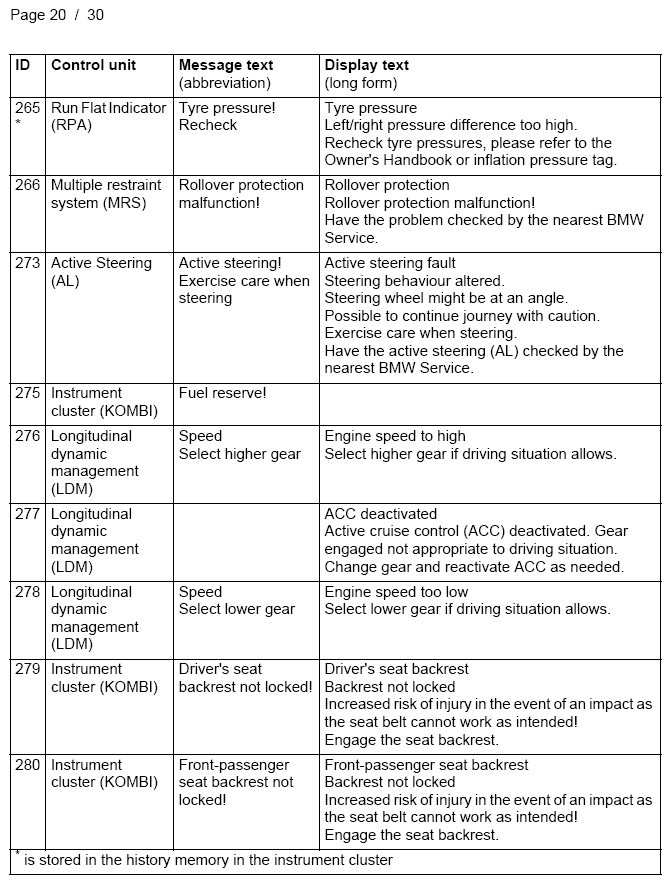

Fig 20: Instrument Cluster Diagnosis/Check-Control Messages (Page 20)

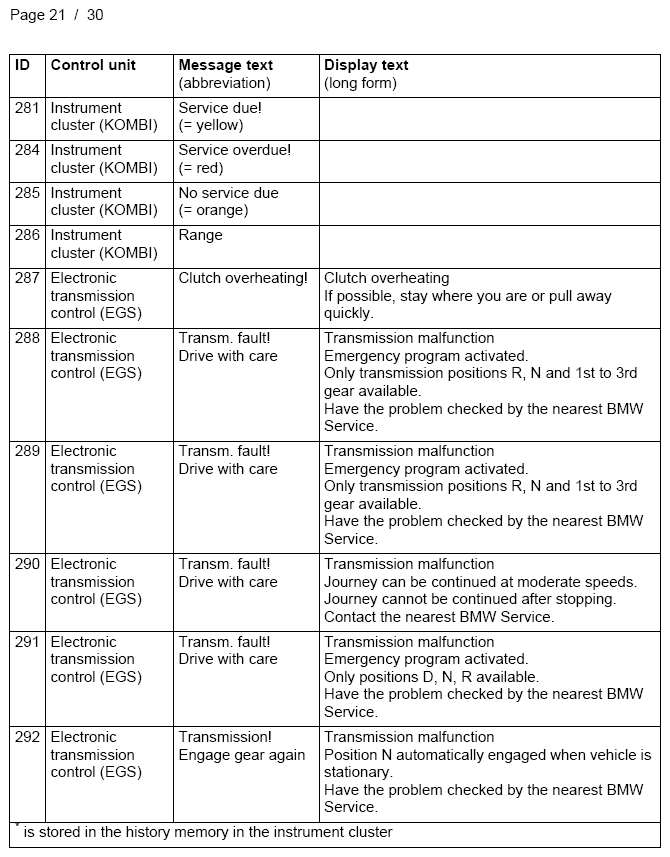

Fig 21: Instrument Cluster Diagnosis/Check-Control Messages (Page 21)

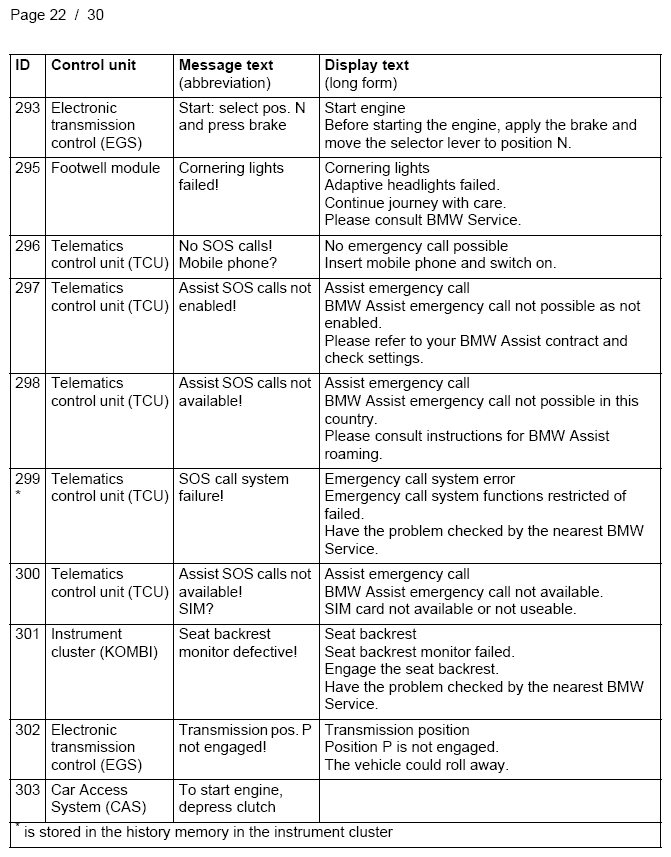

Fig 22: Instrument Cluster Diagnosis/Check-Control Messages (Page 22)

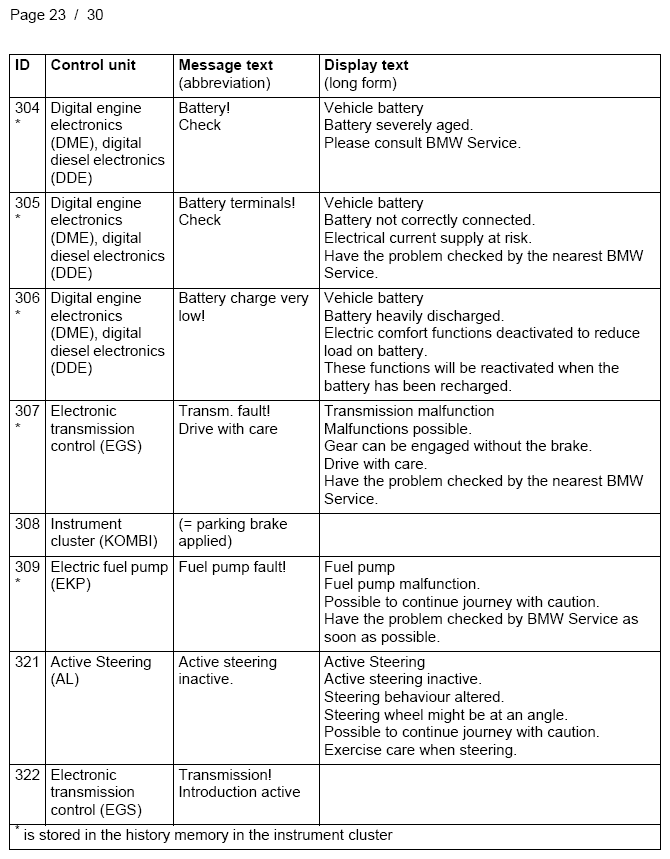

Fig 23: Instrument Cluster Diagnosis/Check-Control Messages (Page 23)

Fig 24: Instrument Cluster Diagnosis/Check-Control Messages (Page 24)

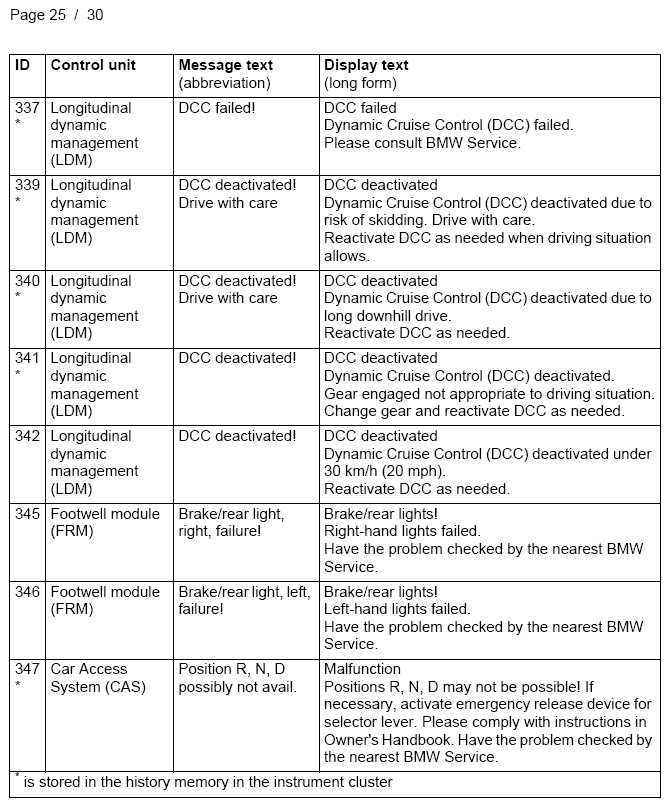

Fig 25: Instrument Cluster Diagnosis/Check-Control Messages (Page 25)

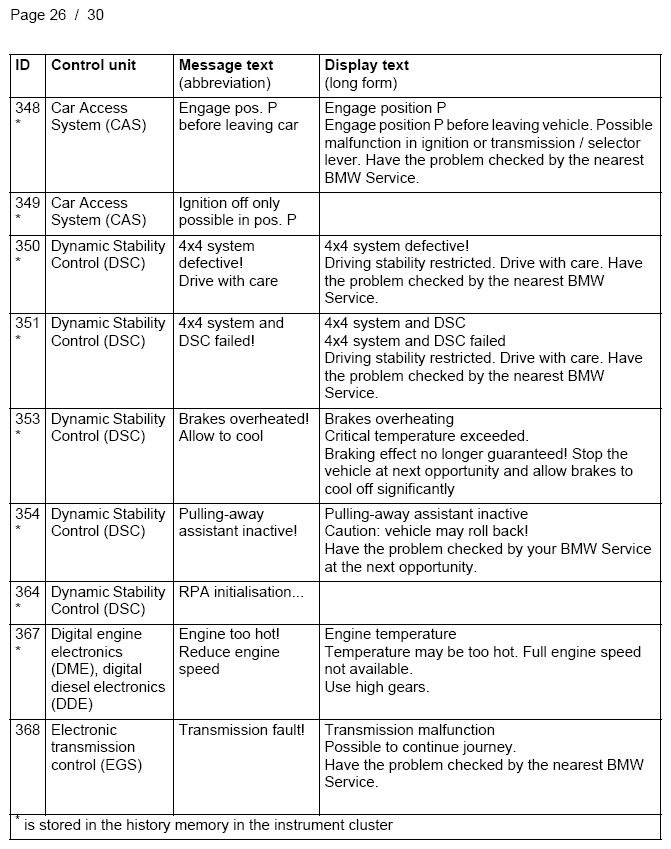

Fig 26: Instrument Cluster Diagnosis/Check-Control Messages (Page 26)

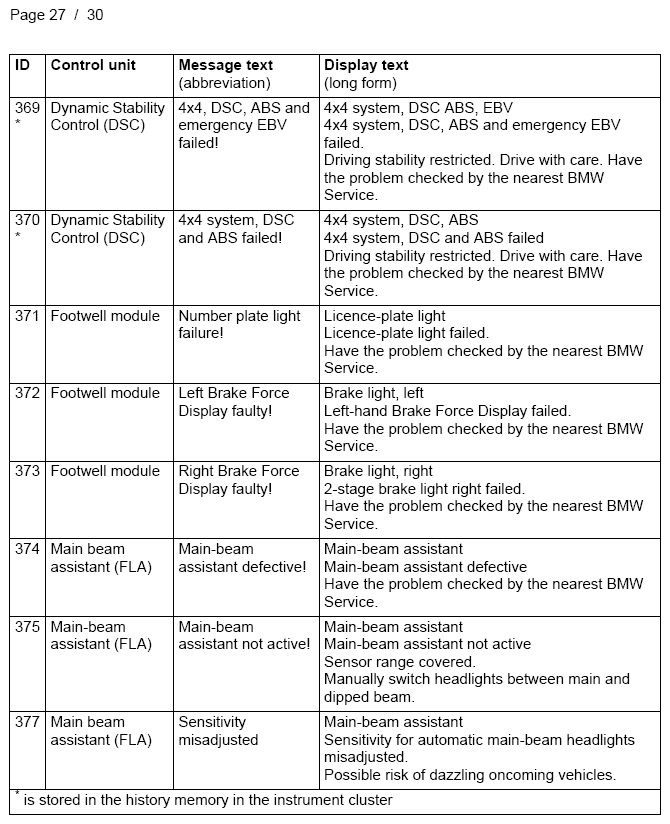

Fig 27: Instrument Cluster Diagnosis/Check-Control Messages (Page 27)

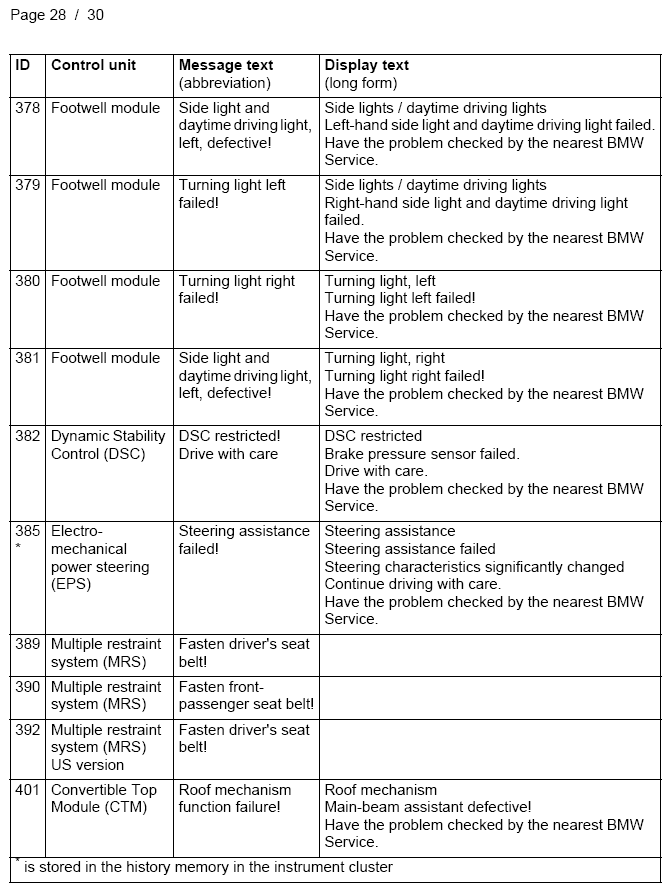

Fig 28: Instrument Cluster Diagnosis/Check-Control Messages (Page 28)

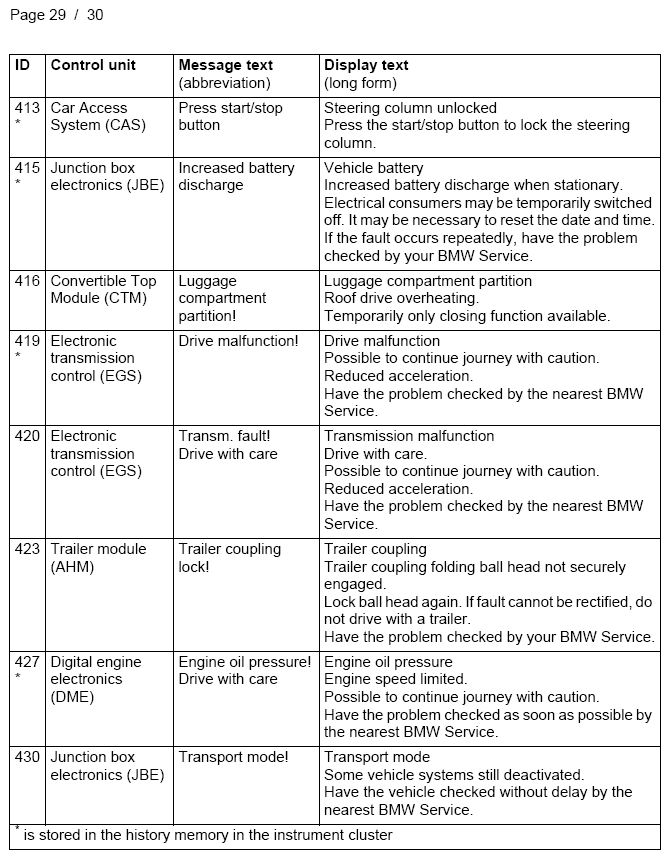

Fig 29: Instrument Cluster Diagnosis/Check-Control Messages (Page 29)

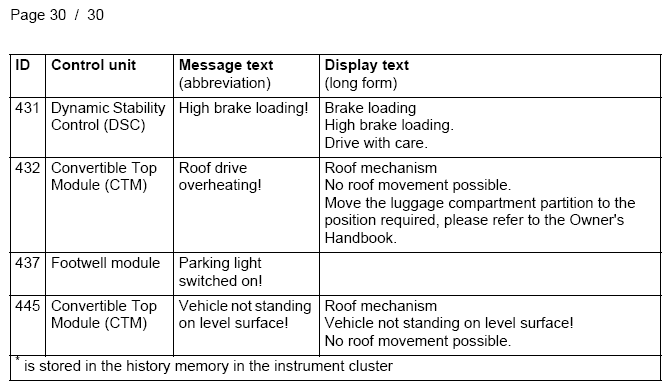

Fig 30: Instrument Cluster Diagnosis/Check-Control Messages (Page 30)
