MECHANICAL TOOLS

TECHNICAL SERVICE BULLETIN

Reference Number(s): SI M04 04 08, Date of Issue: July 3, 2008

MINI:	N12, N14
GROUP:	Tools and Equipment

SUBJECT

Mechanical Tools

SITUATION

Distribution of the following tools will be through the Automatic Tool Shipment Program. Additional tools may be purchased through your Regional Distribution Center (RDC).

Crossbar with support plate

For holding the engine in place when releasing the engine bearing (cylinder head removal).

Order PN 83 30 0 496 263

Cartool PN 11 9 640

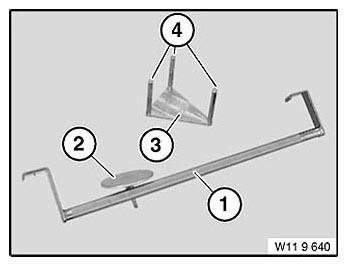

Fig 1: Crossbar With Support Plate

Fixture

For installing the injector snap ring.

Order PN 83 30 0 496 297

Cartool PN 13 0 260

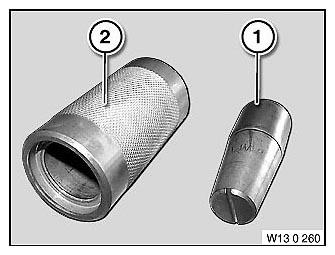

Fig 2: Fixture For Installing Injector Snap Ring
