V-Adapter Cables (M04 04 07)

Publication date: 2007-02-23
Reference number: M04 04 07

V-ADAPTER CABLES

TECHNICAL SERVICE BULLETIN

Reference Number(s): SI M04 04 07, Date of Issue: February 23, 2007

MINI:	R56
GROUP:	Tools and Equipment

SUBJECT

V-Adapter Cables

SITUATION

Distribution of the following tool will be through the Automatic Tool Shipment Program. Additional tools may be purchased through your PDC.

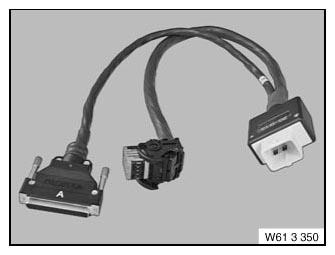

V-Cable, 32 - pin

ORDER PN 83 30 0 495 778

Cartool PN 61 3 350

Used for diagnosis on the GDI control unit

Fig 1: V-Cable, 32 - Pin

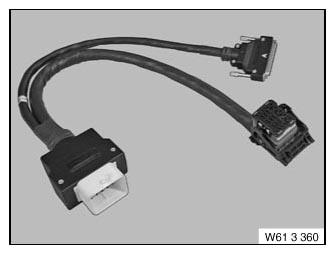

V-Cable 53 pin

ORDER PN 83 30 0 495 779

Cartool PN 61 3 360

Used for diagnosis on the GDI control unit 1.1

Fig 2: V-Cable, 53 - Pin

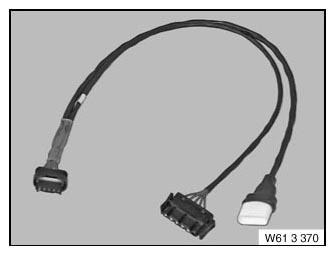

V-Cable 5 pin

ORDER PN 83 30 0 495 780

Cartool PN 61 3 370

Used for the diagnosis on the HFM

Fig 3: V-Cable 5 Pin

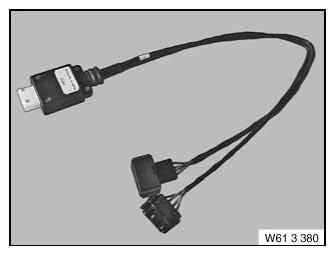

V-Cable 4 pin

ORDER PN 83 30 0 495 781

Cartool PN 61 3 380

Used for the diagnosis on the oxygen sensor

Fig 4: V-Cable 4 Pin

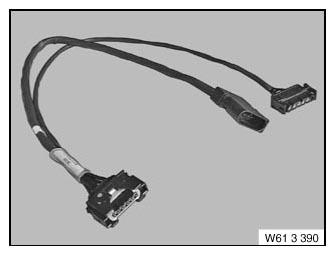

V-Cable 5 pin

ORDER PN 83 30 0 495 782

Cartool PN 61 3 390

Used for diagnosis on the engine connector

Fig 5: V-Cable 5 Pin

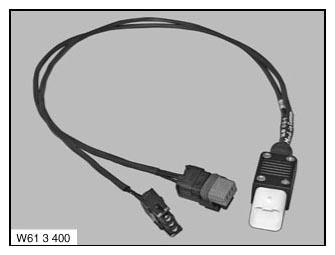

V-Cable 3 pin

ORDER PN 83 30 0 495 783

Cartool PN 61 3 400

Used for diagnosis on the fuel pressure sensor

Fig 6: V-Cable 3 Pin

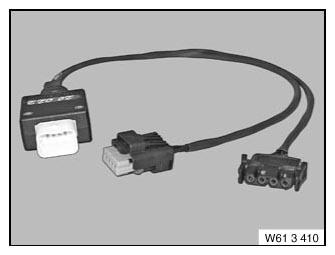

V-Cable 4 pin

ORDER PN 83 30 0 495 784

Cartool PN 61 3 410

Used for diagnosis on the charge pressure controller

Fig 7: V-Cable 4 Pin

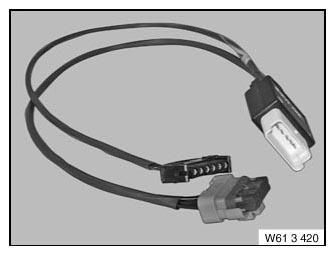

V-Cable 6 pin

ORDER PN 83 30 0 495 785

Cartool PN 61 3 420

Used for diagnosis on the throttle valve controller

Fig 8: V-Cable 6 Pin

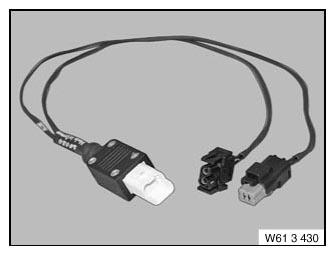

V-Cable 2 pin

ORDER PN 83 30 0 495 786

Cartool PN 61 3 430

Used for diagnosis of the knock sensor 1

Fig 9: V-Cable 2 Pin
