61 31 299 Removing and Installing/Replacing Clutch Switch Module

WARNING: This page is about a different car, the 2010 BMW 650i, 2009 BMW 650i, 2008 BMW 650i, 2007 BMW 650i, and 2006 BMW 650i. However, it is still accessible from the selected car via links, so may be relevant.

Necessary preliminary tasks:

Remove trim panel for pedal assembly . See 51 45 185 REMOVING AND INSTALLING/REPLACING PANEL FOR PEDALS

NOTE: Clutch master cylinder (2) is removed for purposes of clarity.

Lever out clutch switch module (1) from clutch master cylinder (2) with screwdriver.

Unlock plug (4) and disconnect from housing (3).

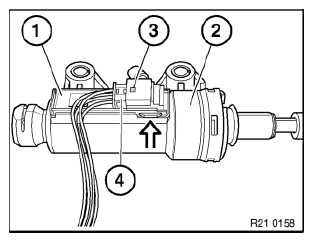

Fig 1: Identifying Clutch Master Cylinder, Clutch Switch Module & Plug

Courtesy of BMW OF NORTH AMERICA, INC.

Installation:

Clutch switch module is secured against incorrect installation.

Clutch switch module must snap audibly into place.

Fig 2: Identifying Clutch Switch Module

Courtesy of BMW OF NORTH AMERICA, INC.
