Removal & Installation

WARNING: This page does not describe the selected car, but rather 21 other vehicles, including the 2003 BMW M5, 2003 BMW 540i, 2003 BMW 530i, 2003 BMW 525i, and 2002 BMW M5. However, it is still accessible from the selected car via links, so may be relevant.

Before removing the ABS/ASC+T/DSC control module, read out the fault memory and, if necessary, print out the fault code.
Remove right glove box.
Unfasten bolts (1), pull cable out of bracket and remove finisher from metal carrier toward rear. See Fig 1 .
Open cable connector (1). See Fig 2 .
Press detent for control unit downward (1). Tilt control unit to left at bottom out of bracket (2). See Fig 3 .
Open detent for plug connector (1). Remove connector from control unit by tilting out (2). See Fig 4 .
Installation is reverse of removal.

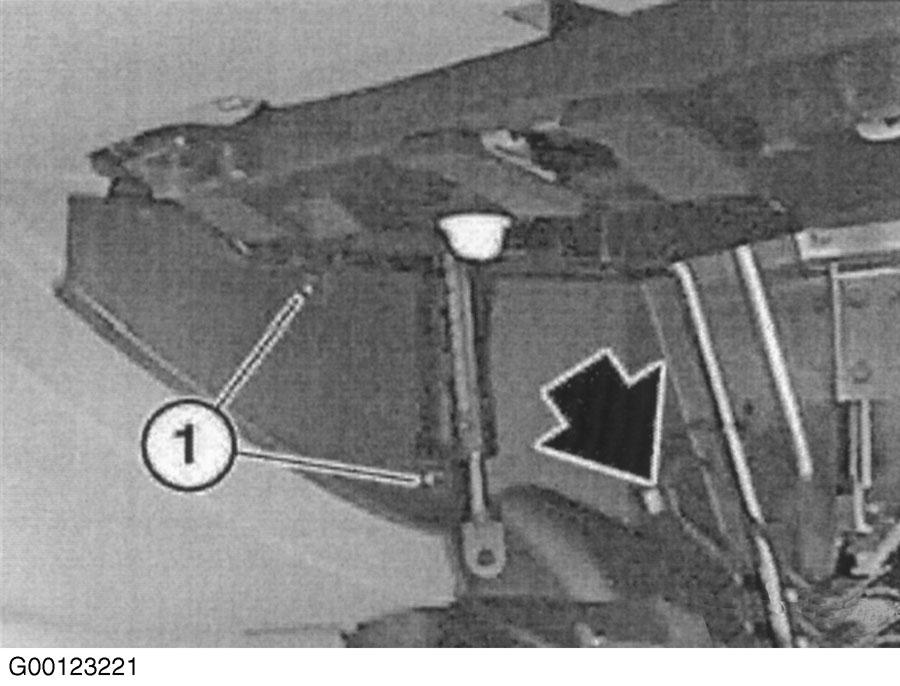

Fig 1: Removing Finisher From Metal Carrier

Courtesy of BMW OF NORTH AMERICA, INC.

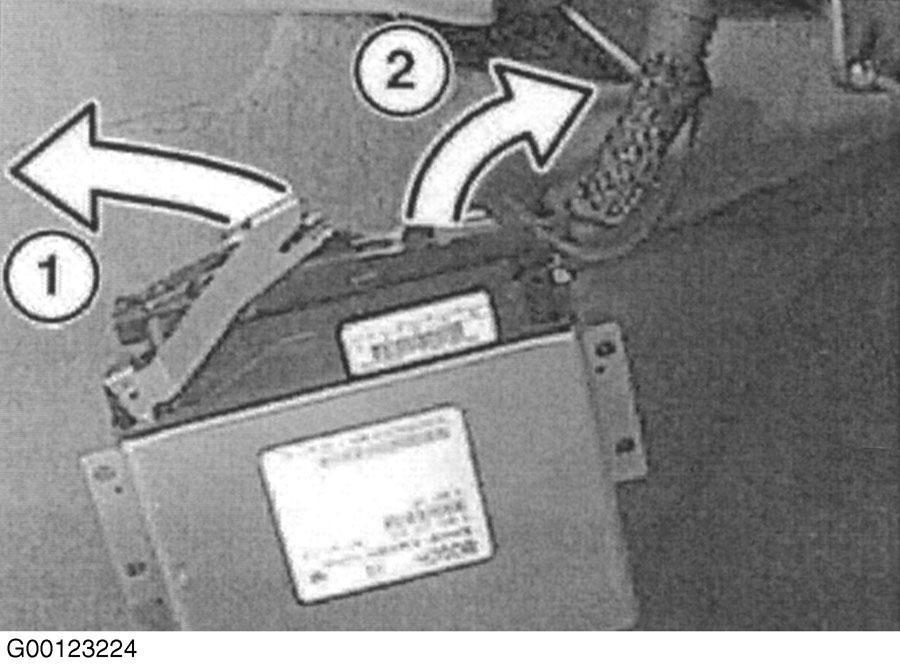

Fig 2: Locating Cable Connector

Courtesy of BMW OF NORTH AMERICA, INC.

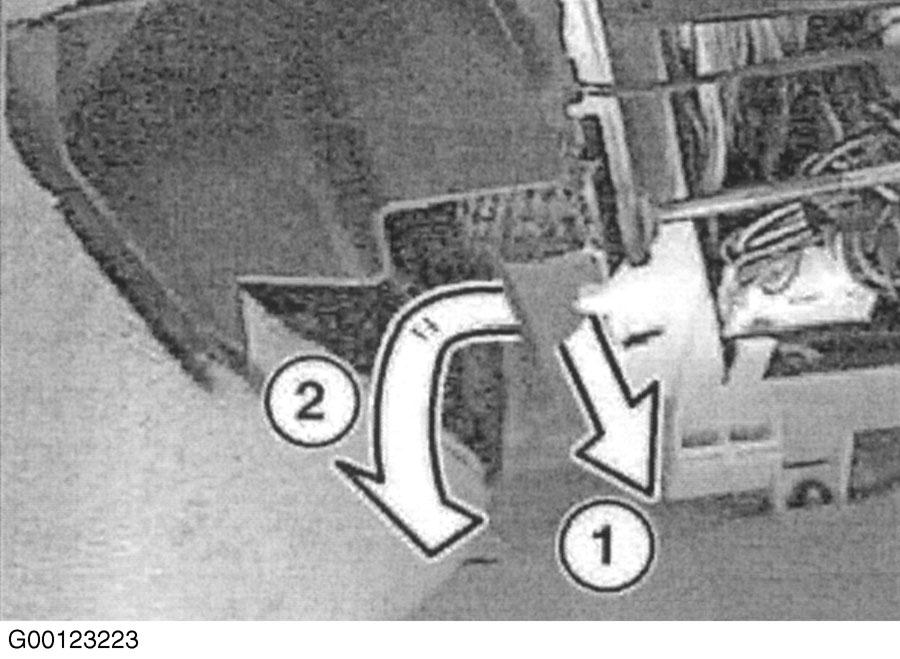

Fig 3: Pressing Detent

Courtesy of BMW OF NORTH AMERICA, INC.

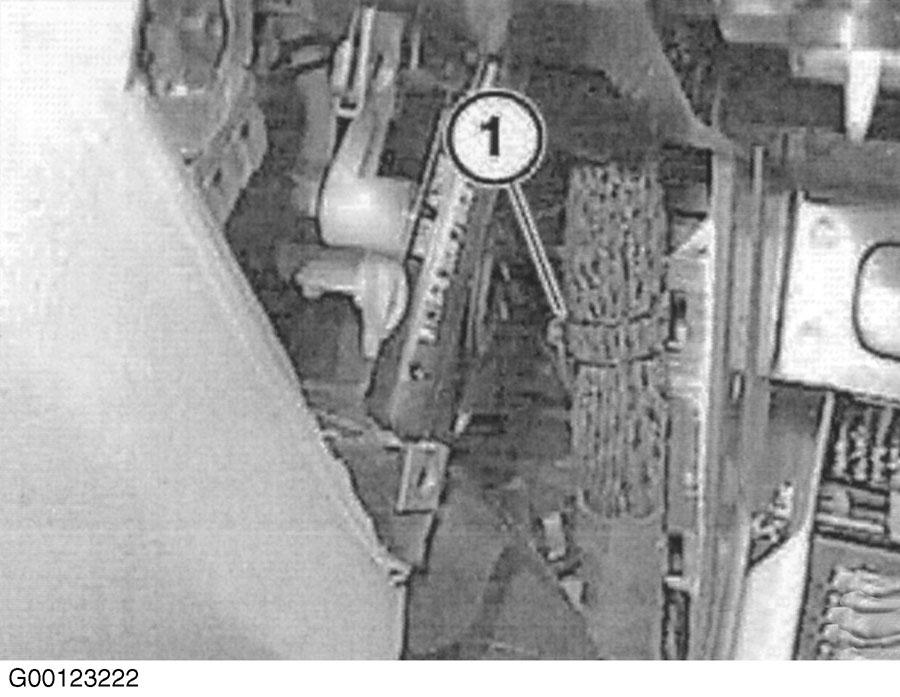

Fig 4: Removing Connector From Control Unit
