Removing and Installing/Replacing Heater Controls (IHKA)

64 11 334 - Removing and installing/replacing heater controls (IHKA)





Necessary preliminary tasks:
- Remove radio receiver Service and Repair
- Release switch block on instrument panel Service and Repair

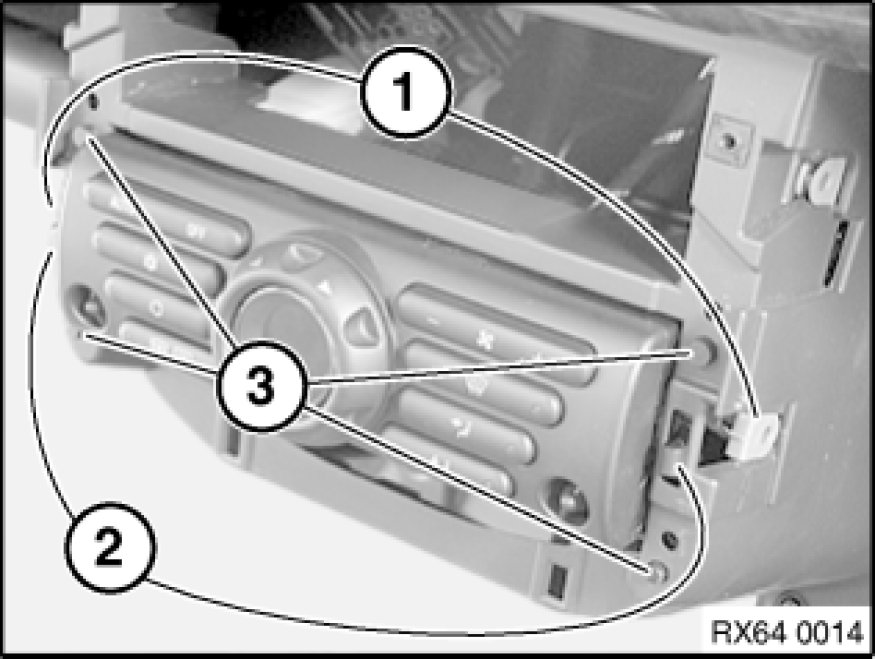

Remove clamp (1).
Release clamp (2) for heater controls.
Press heater controls towards rear to release guide pins (3).





Pull out heater controls slightly.

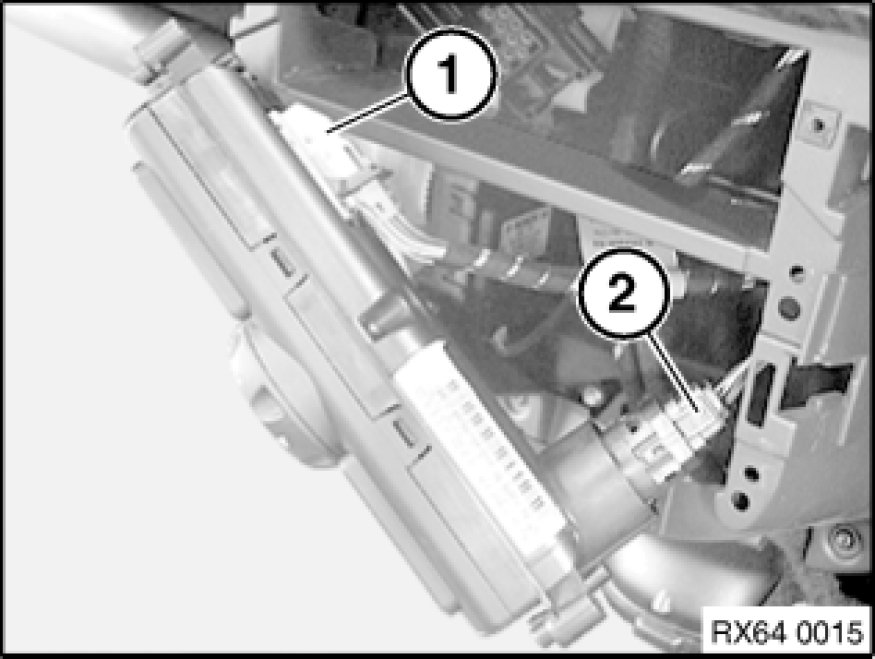

Unlock plug connections (1) and (2) and disconnect.
Replacement:
Remove sensor blower for interior temperature Replacing Sensor Fan for Interior Temperature (IHKA).
