Ignition Cable: Service and Repair

12 12 021 - Replacing an ignition cable





Switch off ignition.
Detach faulty ignition cable from ignition coil and spark plug.





Installation:
Ignition cable must snap audibly into place on ignition coil and on spark plug.

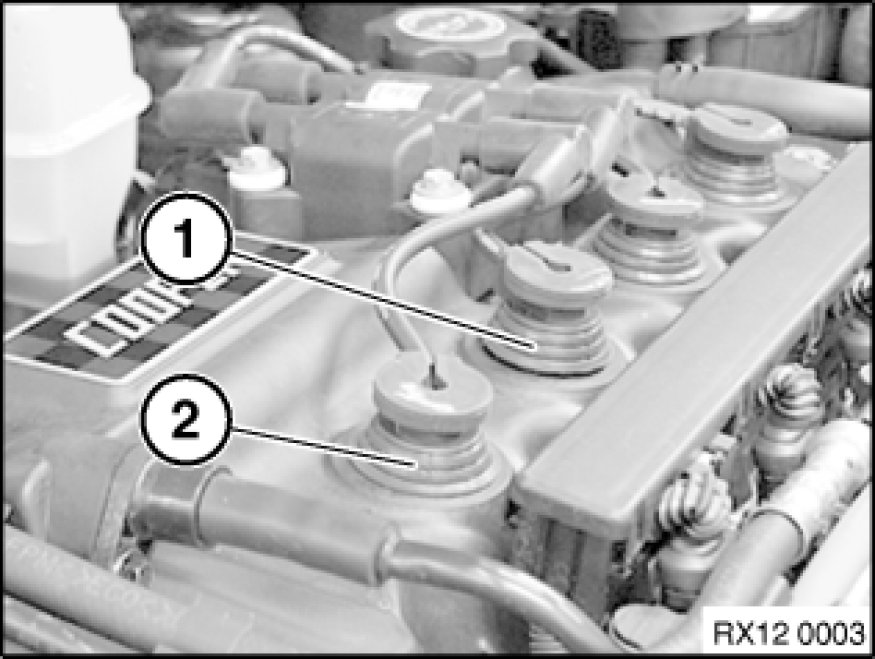

Incorrectly installed ignition cable (1) and correctly installed ignition cable (2).
