Convertible Top Control Module: Service and Repair

61 35 147 - Removing and installing/replacing convertible top module





Necessary preliminary tasks:
- Remove rear left side trim panel Removing and Installing Rear Left or Right Side Trim Panel

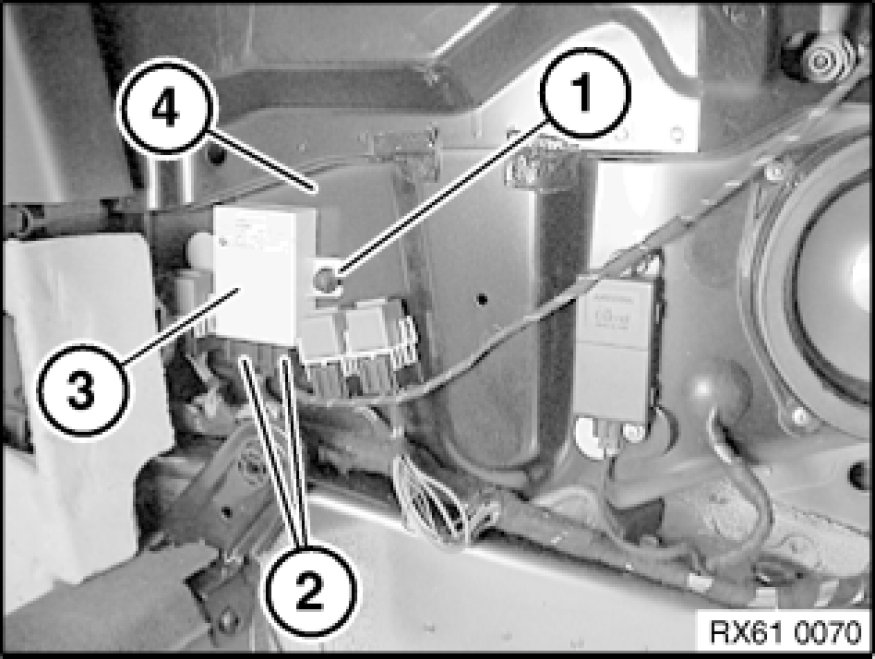

Unscrew nut (1).
Unlock plug connections (2) and disconnect.
Remove convertible top module (3).





Replacement:
Carry out programming/coding Programming and Relearning.
