52 17... Removing and installing outer upper rail cover

WARNING: This page is about a different car, the 2011 BMW 750xi, 2011 BMW 750Lxi, 2010 BMW 750xi, and 2010 BMW 750Lxi. However, it is still accessible from the selected car via links, so may be relevant.

Move seat backwards and upwards.

Unclip cover (1) towards front.

Fig 1: Removing Rail Trim

Courtesy of BMW OF NORTH AMERICA, INC.

Driver's seat only:

NOTE: Version with end fitting pretensioner.

Feed cover out of seat mechanism:

upwards,
slide towards rear

Feed out cover.

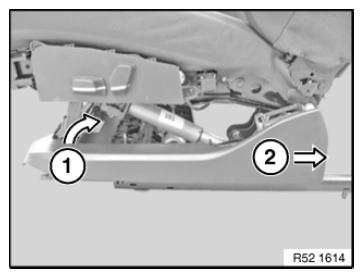

Fig 2: Removing Cover From Seat Mechanism

Courtesy of BMW OF NORTH AMERICA, INC.
