12 36... Removing and installing/replacing lid on power electronics box

WARNING: This page is about a different car, the 2011 BMW X6 and 2010 BMW X6. However, it is still accessible from the selected car via links, so may be relevant.

WARNING: High-voltage system - danger to life!

WARNING: The following points must be strictly observed prior to starting work:

DE-ENERGIZE THE HIGH-VOLTAGE SYSTEM
Observe SAFETY INSTRUCTIONS for handling with hybrid vehicles

Necessary preliminary tasks:

REMOVE POWER ELECTRONICS BOX LID.

Release screws (1).

Tightening torque 12 36 5AZ .

Remove cover (2).

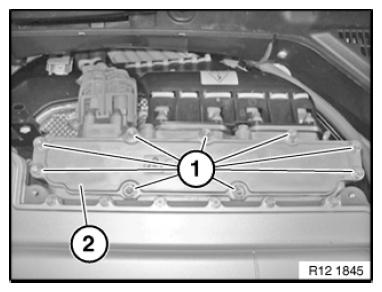

Fig 1: Identifying Power Electronics Box Lid, Cover And Screws

Courtesy of BMW OF NORTH AMERICA, INC.

Installation:

Replace seal (1) for lid on power electronics box. Clean guide for seal on power electronics box before installing new seal.

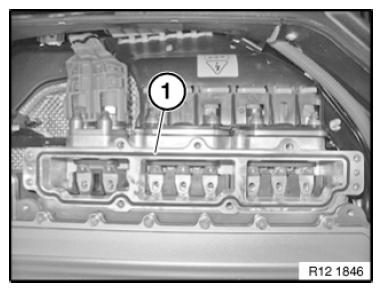

Fig 2: Identifying Power Electronics Box Lid Seal

Courtesy of BMW OF NORTH AMERICA, INC.
