61 13... Removing and installing/replacing OBD-II socket

WARNING: This page is about a different car, the 2011 BMW X6 and 2010 BMW X6. However, it is still accessible from the selected car via links, so may be relevant.

Special tools required:

61 0 315

Necessary preliminary tasks:

Remove PEDAL ASSEMBLY TRIM

Release screws (1).

Remove OBD-II socket (2) from dashboard carrier (3).

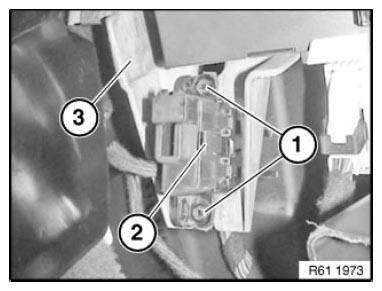

Fig 1: Identifying OBD-II Socket, Dashboard Carrier And Screws

Courtesy of BMW OF NORTH AMERICA, INC.

Remove OBD-II socket cover (2) from OBD-II socket (1).

Unlock slide plate (3) with a suitable tool in direction of arrow.

Insert special tool 61 0 315 into OBD-II socket (1) in the direction of the arrow and press out the associated flat spring contact (4). Press remaining flat spring contacts out of OBD-II socket (1) with special tool 61 0 315 .

Fig 2: Pressing Flat Spring Contacts From OBD-II Socket Using Special Tool (61 0 315)

Courtesy of BMW OF NORTH AMERICA, INC.

Installation note:

Pay attention to pin assignment of OBD-II socket (1).

Make sure flat spring contacts and slide plate (3) are correctly engaged and seated in OBD-II socket (1).
