Enabling Code FSC/SWT. Enabling The Navigation System Map At QC1 (SI M65 03 10)

Publication date: 2010-12-01
Reference number: SI M65 03 10

ENABLING CODE FSC/SWT. ENABLING THE NAVIGATION SYSTEM MAP AT QC1

TECHNICAL SERVICE BULLETIN

Reference Number(s): SI M65 03 10, Date of Issue: December 2010

MINI:	All models from December 2010 on with option 606 (Navigation System Business, CHAMP2)
GROUP:	Audio, Navigation, Monitors, Alarms, SRS

SUBJECT

Enabling Code FSC/SWT. Enabling the Navigation System Map at QC1

SITUATION

The navigation system is inoperative unless the map is enabled during the QC1 Pre-Delivery Check.

INFORMATION

New vehicles come equipped with. navigation road map that must be enabled via an enabling code (FSC). This process is part of the new QC1 Pre-Delivery Check performed with the ISID (ISTA Diagnosis). IMPORTANT: There is no programming involved!

PROCEDURE

Enabling the navigation map at QC1 requires the use of an "INITIAL " enabling code.

NOTE: In order to avoid unnecessary delays in the QC1 process, order this "INITIAL" enabling code at least 24 hours before performing QC1. In ASAP, this code is valid for 30 days without downloading, after which it is automatically deleted.

Unlike other enabling codes, these "INITIAL " enabling codes are available free of charge from the Parts department (nominal charge $.01). The part number for the "INITIAL " enabling code is published in the EPC. It must be ordered as. coded part via the parts ordering process.

The delivery of the enabling code takes place in the After Sales Assistance Portal (ASAP).

NOTE: If. MINI dealer has two dealer numbers, when retrieving the enabling code, be sure to use the same dealer number that your Parts department used when the original order was placed.

Procedure for ordering and downloading the initial enabling code:

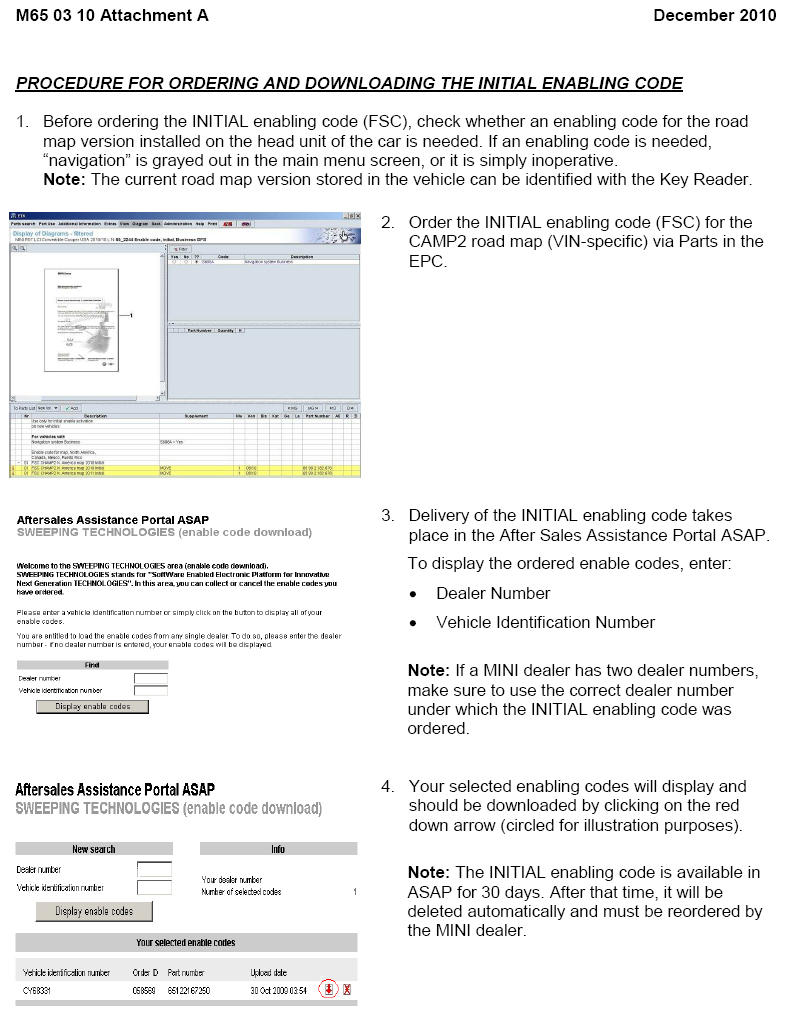

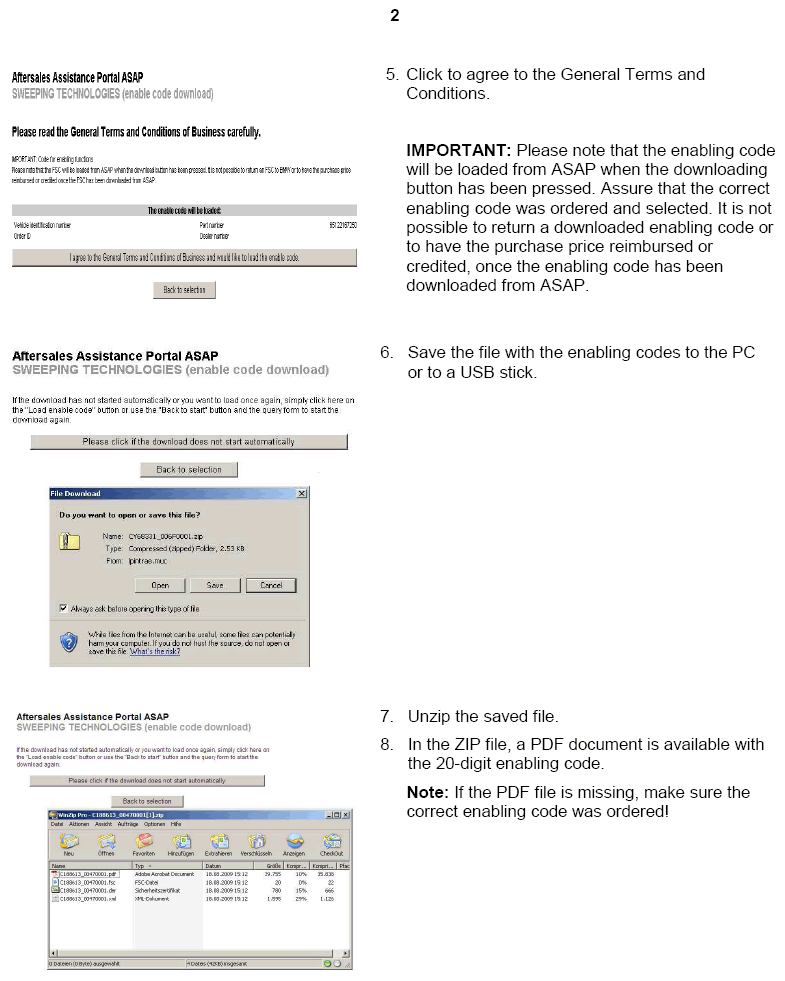

Refer to attachment A .

Procedure for activation of the navigation system map using ISTA:

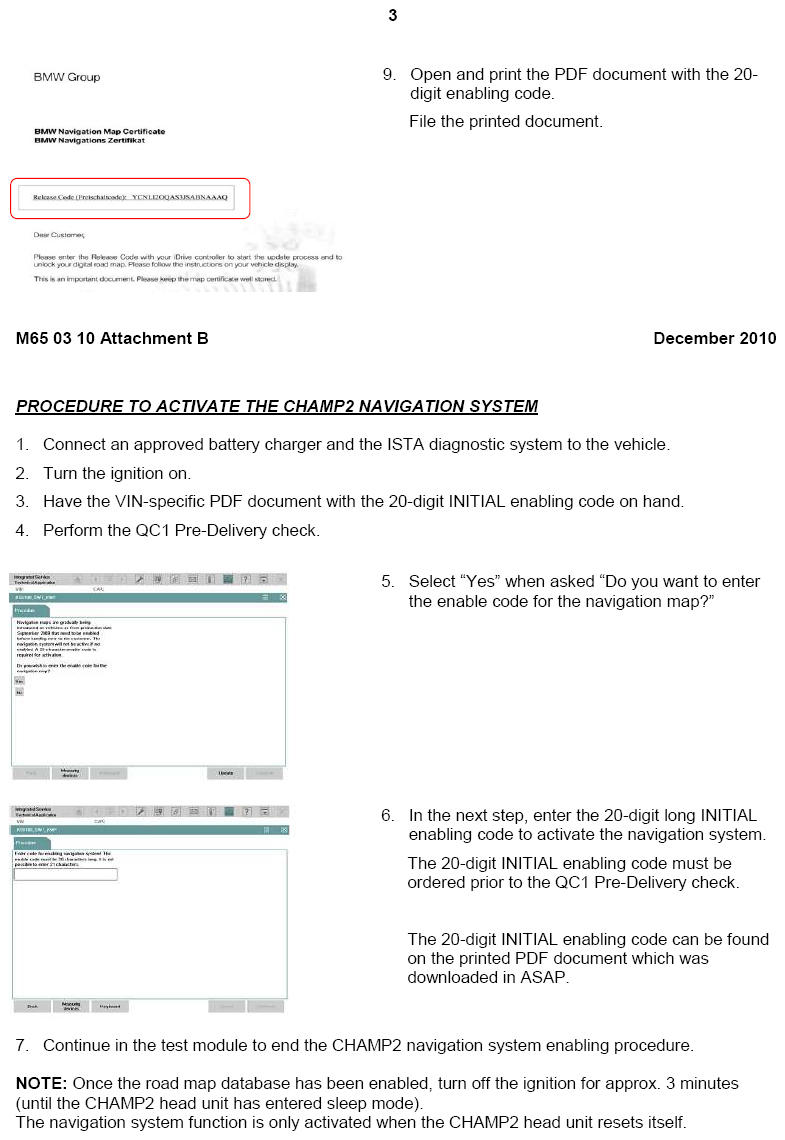

Refer to attachment B .

PARTS INFORMATION

Part Number	Description	Quantity
Refer to EPC	FSC CHAMP2 N. America Map INITIAL	1

WARRANTY INFORMATION

Since this process is part of the new QC1 Pre-Delivery Check, no additional warranty costs can be claimed.

ATTACHMENTS

view PDF attachment M650310_Attachment_A .

view PDF attachment M650310_Attachment_B .
