Procedures

61 13 ... Fuse Holder

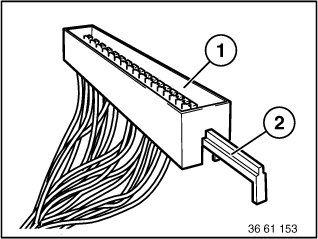

Remove appropriate fuse from fuse holder (1).

NOTE: Identify the position when removing fuses.

Pull sliding lock (2) out of fuse holder (1) completely.

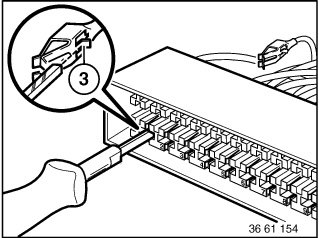

With special tool 61 1 136 or 61 1 137 (pressing-off tool), press back retaining hooks (3) of appropriate contact and pull out cable.
