61 13 ... Base of Tab Connector Housings




61 13 ... - Base of tab connector housings

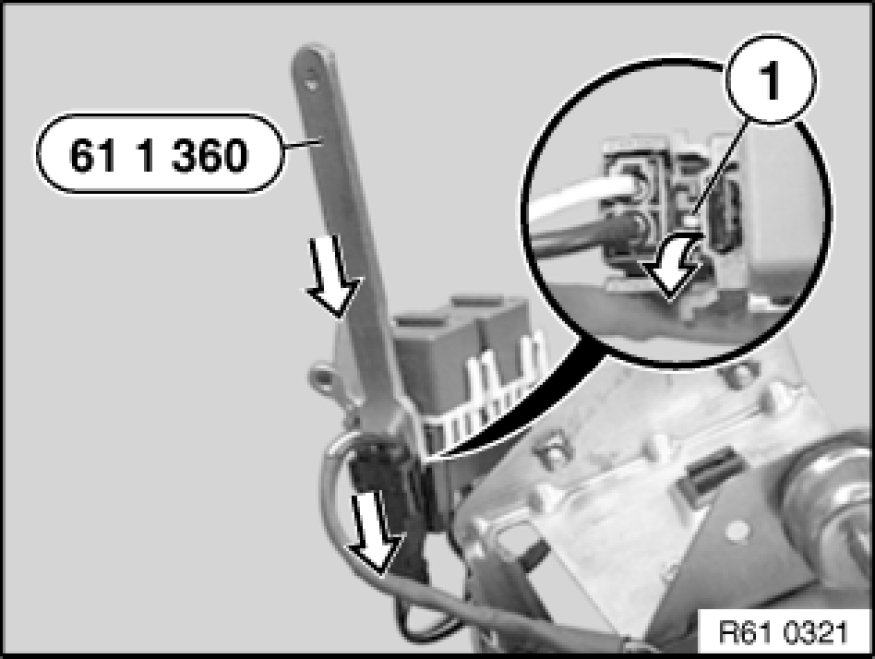

Unlock hook (1) with special tool 61 1 360 and slide plug housing downwards out of base.
