DIS Temperature Probe

WARNING: This page does not describe the selected car, but rather 41 other vehicles, including the 2003 BMW M5, 2003 BMW M3, 2003 BMW 540i, 2003 BMW 530i, and 2003 BMW 525i. However, it is still accessible from the selected car via links, so may be relevant.

The Diagnosis and Information System (DIS) tester is equipped with a temperature sensor cable, stored in the compartment at the rear of the tester. It can be used to measure the temperatures of liquids and gasses from -20° to 200°C.

To use the DIS as a thermometer:

Select "Measurement System" button on the DIS start screen.

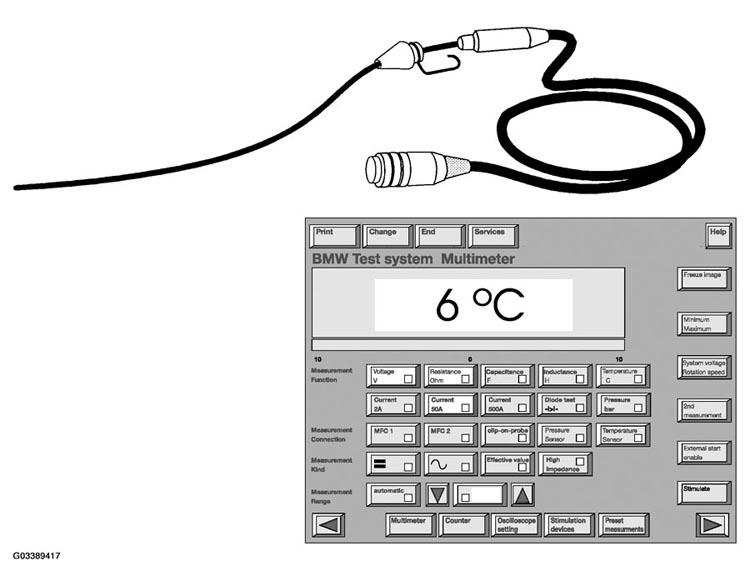

Fig 1: Identifying DIS Temperature Probe
Courtesy of BMW OF NORTH AMERICA, INC.
Select "Temperature C" button on the "Measuring System Multimeter" screen.
