Control Units
WARNING: This page is about a different car, the 1997 BMW M3. However, it is still accessible from the selected car via links, so may be relevant.
CONTROL UNITS
| Component | Component Location |
|---|---|
| ABS Control Module/Hydraulic Unit | At left rear of engine compartment. |
| Anti-Theft Control Module (Alpine) | Behind glove box. |
| Automatic Climate Control Module | Behind center console. |
| Body Electronics Control Module | Behind glove box. |
| Check Control Module | Below left side of dash. |

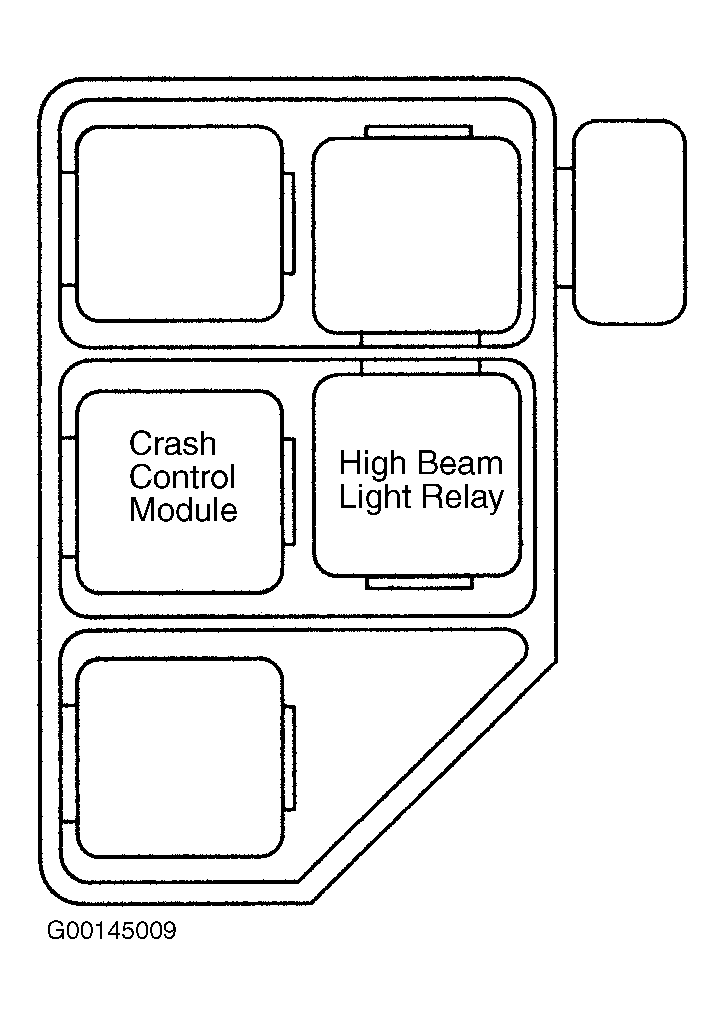

| Crash Control Module | Under left side of dash, on relay panel. See Figure . |
| Cruise Control Module | Behind glove box. |
| Day Light Relay Module | Below left side of dash. |
| Electronic Immobilizer Control Module (EWS II) | Behind glove box. |
| Engine Control Module | At right rear corner of engine compartment. |
| On-Board Computer | Behind center console. |
| Relay Module | Behind glove box. |
| Supplemental Restraint System Control Module | Below rear seat. |
| Tilt/Slide Sun Roof Control Assembly | Under roof center panel. |
| Transmission Control Module | At right rear corner of engine compartment. |
| Transmitter Module (EWS II) | At right side of steering column. |
| Wiper/Washer Module | Behind glove box. |
| Wiper/Washer Module (Low II) | Behind glove box. |
