Component Location Graphics

WARNING: This page is about a different car, the 2001 BMW M Roadster and 2001 BMW M Coupe. However, it is still accessible from the selected car via links, so may be relevant.

NOTE: Figures may show multiple component locations. Refer to appropriate table for proper figure references.

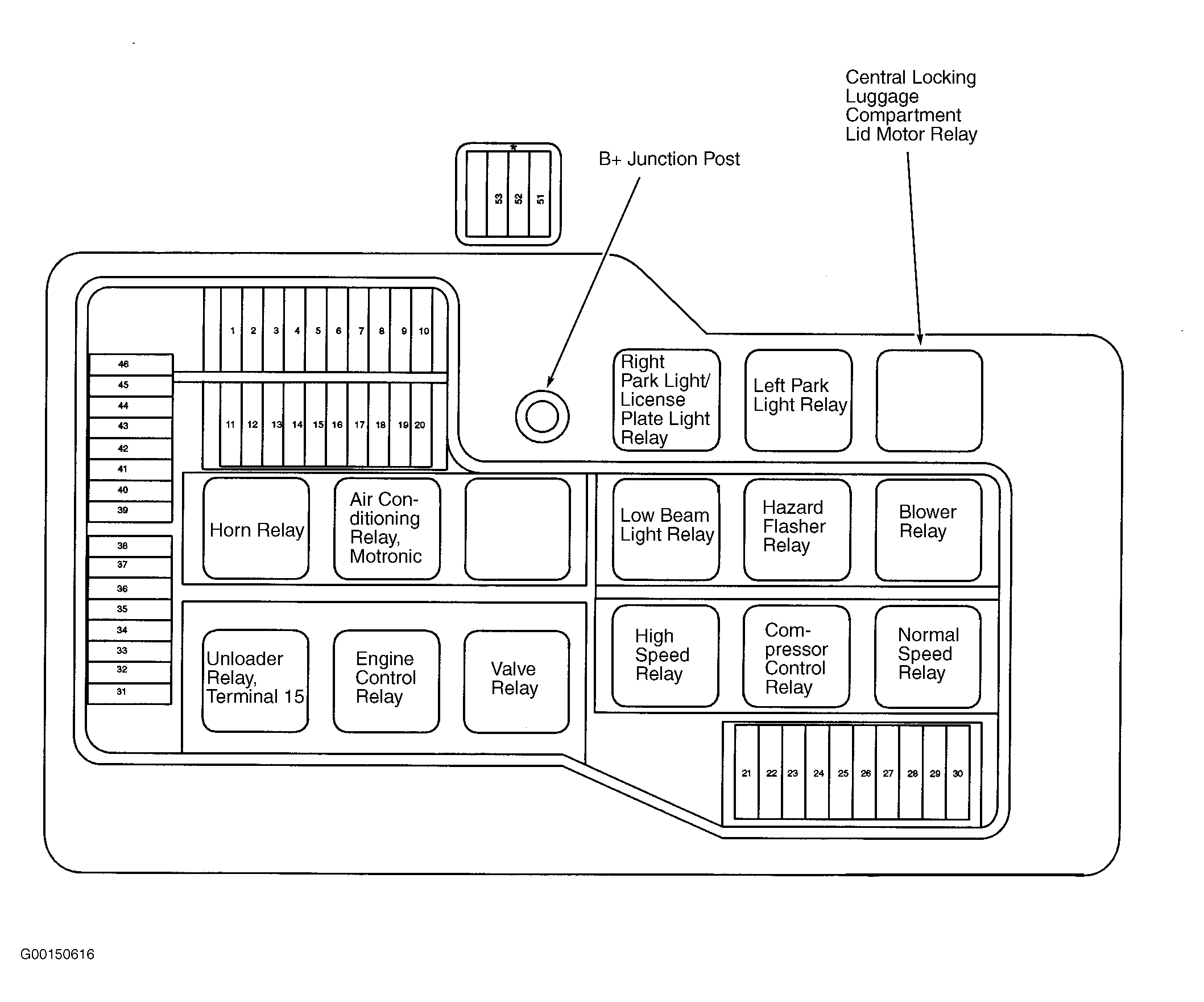

Fig 1: Front Power Distribution Box

Courtesy of BMW OF NORTH AMERICA, INC.

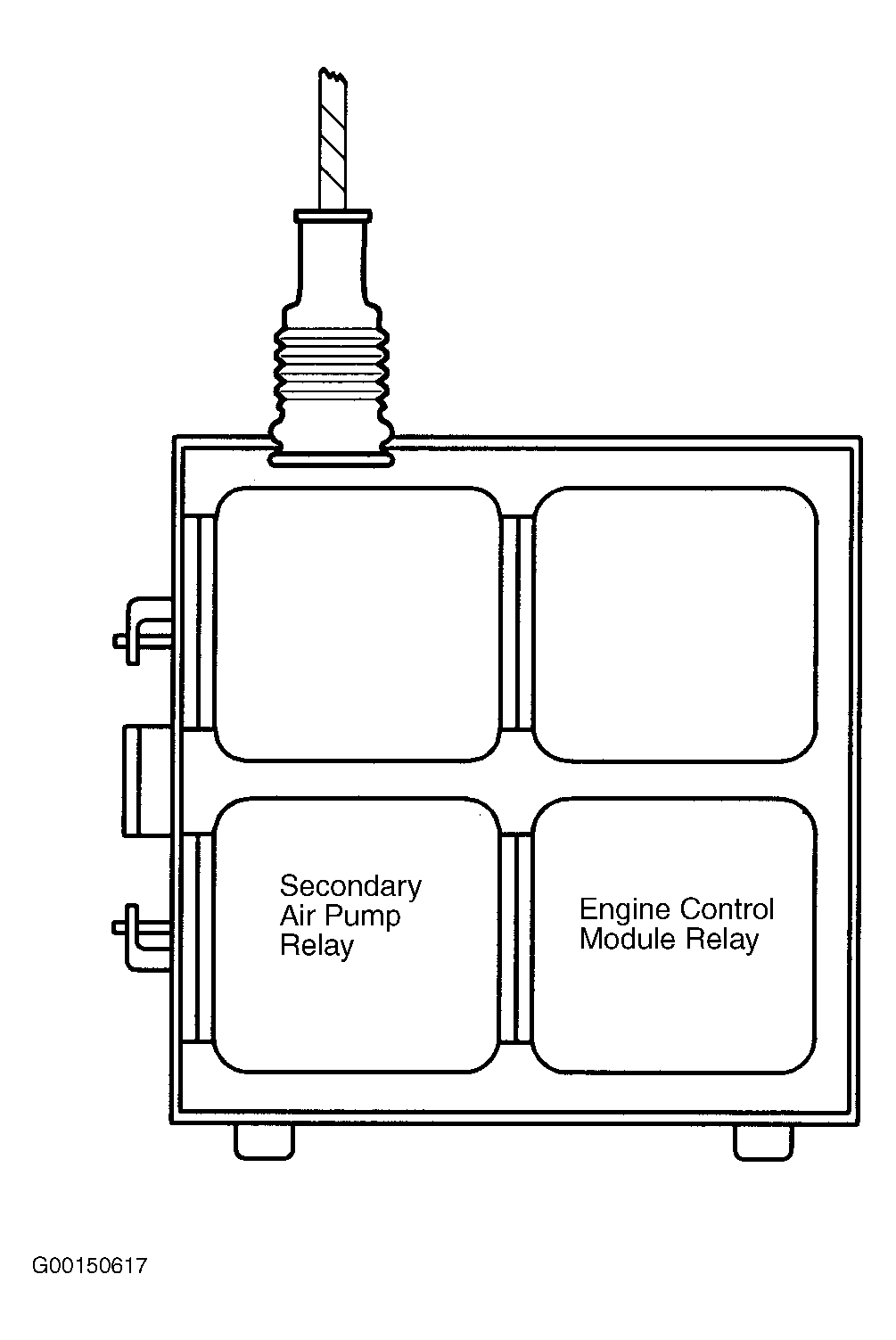

Fig 2: Relay Panel (In E-Box)

Courtesy of BMW OF NORTH AMERICA, INC.

Fig 3: Relay Panel (Under Dash)

Courtesy of BMW OF NORTH AMERICA, INC.
