Oil Pump

WARNING: This page does not describe the selected car, but rather 8 other vehicles, including the 2008 BMW 760Li, 2007 BMW 760Li, 2006 BMW 760i, 2006 BMW 760Li, and 2005 BMW 760i. However, it is still accessible from the selected car via links, so may be relevant.

The oil pump is mounted at an angle to the crankshaft bearing cap and is driven by the crankshaft using a roller chain. The oil pump is a two-stage gear oil pump with two gear clusters.

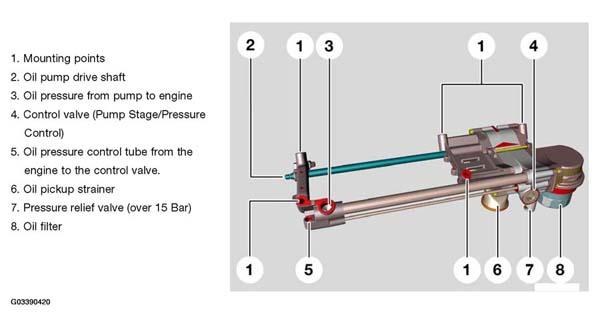

Fig 1: Identifying Oil Pump Assembly
G03390420Courtesy of BMW OF NORTH AMERICA, INC.
