32 00... Identifying suspension from label on front axle

WARNING: This page does not describe the selected car, but rather 10 other vehicles, including the 2010 BMW M6, 2010 BMW 650i, 2009 BMW M6, 2009 BMW 650i, and 2008 BMW M6. However, it is still accessible from the selected car via links, so may be relevant.

NOTE: The type of suspension can be identified from the label on the spring strut/shock absorber.

Label:

BMW part number
Type of suspension
- BA = Standard suspension (basic)
- SP = Sport suspension or rough road package

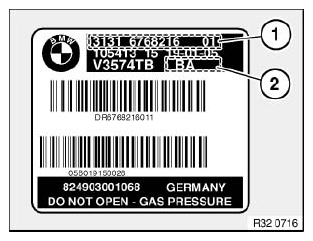

  Fig 1: Identifying Front Axle Label
  Courtesy of BMW OF NORTH AMERICA, INC.
- 60BAX =E60, E61 AWD
- MSP = M Sport suspension
- CHL = China Long
- Option SA 815 = rough road package

In the case of "SP" identification, there is a further distinction between:

Sport suspension without spacer ring (A)
Rough road package with spacer ring (A) above the support bearing

Fig 2: Identifying Spacer Ring
Courtesy of BMW OF NORTH AMERICA, INC.
