31 .. .. Layout Of Spring Strut Shock Absorber
WARNING:
This page is about a different car, the 2007 BMW 550i and 2006 BMW 550i. However, it is still accessible from the selected car via links, so may be relevant.

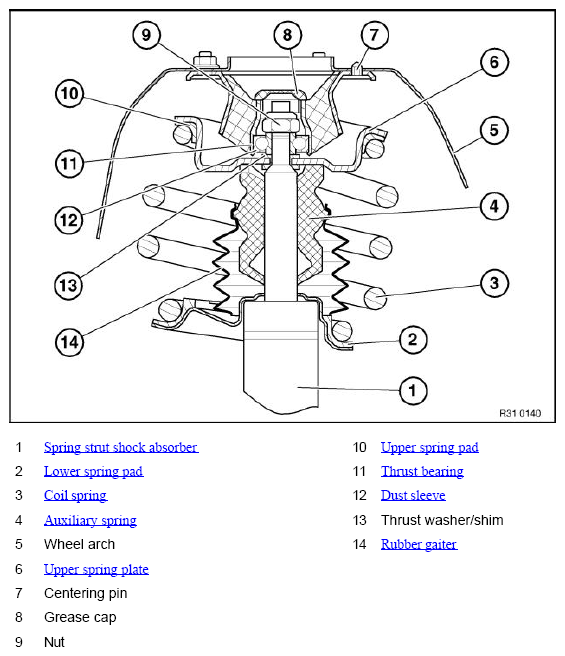

Fig 1: Layout Of Spring Strut Shock Absorber
Courtesy of BMW OF NORTH AMERICA, INC.
