00 .. ... Raising Vehicle With Trolley Jack

WARNING: This page is about a different car, the 2010 BMW X5, 2009 BMW X5, 2008 BMW X5, and 2007 BMW X5. However, it is still accessible from the selected car via links, so may be relevant.

IMPORTANT: Observe the following trolley-jack-related instructions:

Use only BMW-distributed/approved trolley jacks which have rubber plate contact points.
Trolley jacks must be regularly serviced and always checked for functional reliability before they are used!
Check the rubber plate on the trolley jack prior to each use, replacing if necessary.

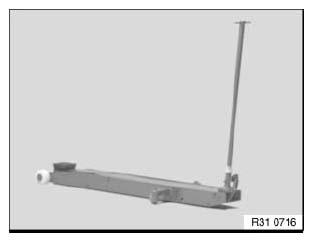

Fig 1: Identifying Trolley Jack

Courtesy of BMW OF NORTH AMERICA, INC.

WARNING: The vehicle may be raised with a trolley jack only at the following jacking points!

Car jacking point
Side car jacking points
Rear differential
Risk of damage: It is not permitted to raise the vehicle at the rear differential cover!

Fig 2: Identifying Car Jacking Point, Side Car Jacking Point And Rear Differential
Courtesy of BMW OF NORTH AMERICA, INC.
