31 60... Notes On Removing And Installing Low Profile Band Clamps

WARNING: This page is about a different car, the 2010 BMW X5, 2009 BMW X5, 2008 BMW X5, and 2007 BMW X5. However, it is still accessible from the selected car via links, so may be relevant.

Special tools required:

31 5 200

IMPORTANT: During removal Low Profile band clamp (dotted line) is overstretched and must not be reused!

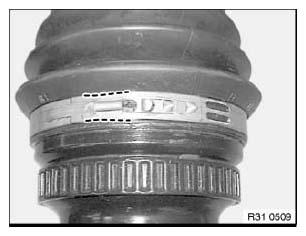

Fig 1: Identifying Clamp

Courtesy of BMW OF NORTH AMERICA, INC.

Removing:

Place special tool 31 5 200 on lugs (1, 2).

NOTE: Make sure that the movable piece (3) of the special tool is placed on lug (1).

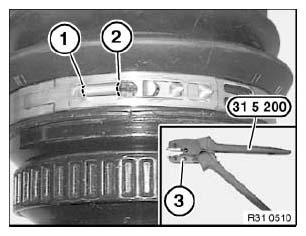

Fig 2: Identifying Movable Piece And Lug

Courtesy of BMW OF NORTH AMERICA, INC.

Compress Low Profile band clamp with special tool 31 5 200 until end of band clamp (1) lifts up.

Relieve tension on special tool and remove Low Profile band clamp.

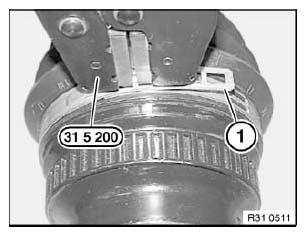

Fig 3: Identifying Clamp And Special Tool

Courtesy of BMW OF NORTH AMERICA, INC.

Assembly:

Position Low Profile band clamp in installation position (A) on gaiter.

Place special tool 31 5 200 on lugs (1, 2).

NOTE: Make sure that the movable piece (3) of the special tool is placed on lug (1).

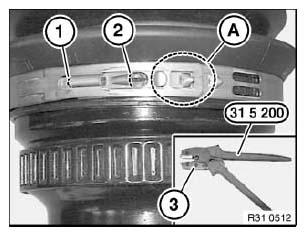

Fig 4: Identifying Movable Piece And Lug

Courtesy of BMW OF NORTH AMERICA, INC.

Check and if necessary correct positions of gaiter and Low Profile band clamp.

Compress Low Profile band clamp with special tool 31 5 200 and press on end of band clamp (1).

Relieve tension on special tool and remove.

Check hook fastener (H); if necessary, repeat operation with new Low Profile band clamp.

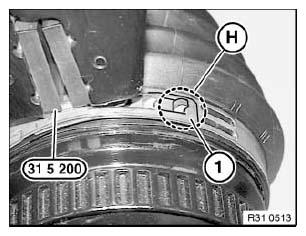

Fig 5: Identifying Hook Fastener, Clamp And Special Tool

Courtesy of BMW OF NORTH AMERICA, INC.
