61 31 195 Removing and installing (replacing) front controller (until 09/2008)

WARNING: This page does not describe the selected car, but rather 6 other vehicles, including the 2010 BMW 528xi, 2010 BMW 528i, 2009 BMW 528xi, 2009 BMW 528i, and 2008 BMW 528xi. However, it is still accessible from the selected car via links, so may be relevant.

IMPORTANT: Read and comply with notes on protection against electrostatic damage (ESD PROTECTION) .

IMPORTANT: Risk of damage! Before dismantling it is imperative to note whether the controller is installed with a version before or after 09/2008! See Removing and installing (replacing) front controller (from 09/2008) for additional information.

Necessary preliminary tasks:

Remove KNOB FOR CONTROLLER
Remove CENTRE CONSOLE

If necessary, disconnect plug connections.

Release screws (1).

Remove controller (2) in direction of arrow from storage compartment (3).

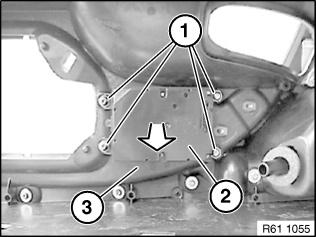

Fig 1: Removing Controller From Storage Compartment

Courtesy of BMW OF NORTH AMERICA, INC.

Replacement:

Carry out VEHICLE PROGRAMMING/CODING .
