51 00... Service position of engine hood/bonnet

WARNING: This page does not describe the selected car, but rather 6 other vehicles, including the 2010 BMW 528xi, 2010 BMW 528i, 2009 BMW 528xi, 2009 BMW 528i, and 2008 BMW 528xi. However, it is still accessible from the selected car via links, so may be relevant.

Special tools required:

51 0 040 . See BODY EQUIPMENT - SPECIAL TOOLS .
51 2 160
51 2 170
51 2 180
51 2 240

NOTE: Only the special tool pertaining to the model series can be selected.

SPECIAL TOOL DESCRIPTION

Model series	Special tool
E46, R50, R52, R53	51 2 160
E53, E60, E61, E63, E64, E81, E82, E88, E85, E86, E87, E90, E91, E92, E93	51 2 170
E65, E66, E67	51 2 180
E83	51 0 040
E70	51 2 240

WARNING: Risk of injury and damage!
Engine hood/bonnet must be held by a second person helping.

NOTE: The illustrations below serve as examples for all corresponding vehicles.
The operation is described on the left side; proceed in the same way for the right side.

Special tool can only be used on housing (1) of gas spring strut (thick part).

NOTE: Gas spring strut can also be installed the other way round (housing on hood/bonnet).
Special tool can be used in both directions.

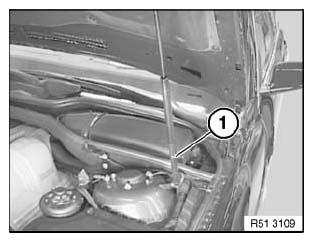

Fig 1: Identifying Special Tool On Housing Of Gas Spring Strut

Courtesy of BMW OF NORTH AMERICA, INC.

Release gas spring strut on left/right housing side.

Slide special tool (1) over housing (2) of gas spring strut. Clip ball socket of special tool on ball stud.

Proceed in same way on other side.

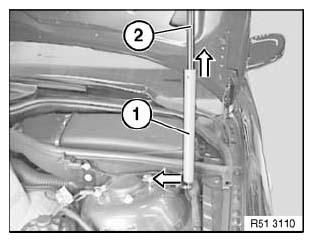

Fig 2: Sliding Special Tool Over Housing Of Gas Spring Strut

Courtesy of BMW OF NORTH AMERICA, INC.
