33 17... Replacing rubber mount

WARNING: This page does not describe the selected car, but rather 6 other vehicles, including the 2013 BMW 128i, 2012 BMW 128i, 2011 BMW 128i, 2010 BMW 128i, and 2009 BMW 128i. However, it is still accessible from the selected car via links, so may be relevant.

Special tools required:

33 4 281
33 4 282
33 4 283
33 4 284
33 4 465
33 4 466

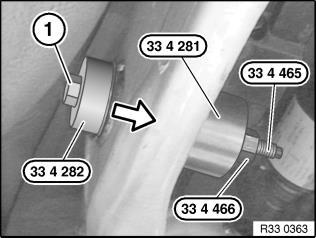

Withdrawing rubber mount: Pull out rubber mount with special tools 33 4 282, 33 4 281, 33 4 466, 33 4 465 and nut (1).

Fig 1: Withdrawing Rubber Mount

Courtesy of BMW OF NORTH AMERICA, INC.

Installing rubber mount: Important! Coat bearing bush in rear axle support and new rubber mount with Circo Light. Align rubber mount by way of elongated hole (1) to vehicle transversal direction.

Fig 2: Align Rubber Mount By Way Of Elongated Hole To Vehicle Transversal Direction

Courtesy of BMW OF NORTH AMERICA, INC.

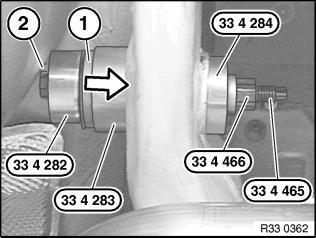

Insert rubber mount (1) in special tool 33 4 283. Align rubber mount (1) by way of elongated hole to vehicle transversal direction. Draw in rubber mount (1) with special tools 33 4 282, 33 4 283, 33 4 284, 33 4 466 33 4 465 2and as far as it will go.

Fig 3: Insert Rubber Mount (1) In Special Tool

Courtesy of BMW OF NORTH AMERICA, INC.
