33 10... Removing and installing/replacing vibration damper
WARNING: This page does not describe the selected car, but rather 6 other vehicles, including the 2013 BMW 128i, 2012 BMW 128i, 2011 BMW 128i, 2010 BMW 128i, and 2009 BMW 128i. However, it is still accessible from the selected car via links, so may be relevant.

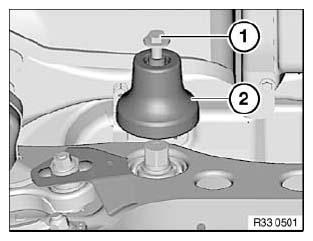

Variant A:
Release screw (1).
See Tightening torque 33 17 2AZ in 33 17 REAR AXLE DIFFERENTIAL MOUNTINGS .
Remove vibration damper (2).

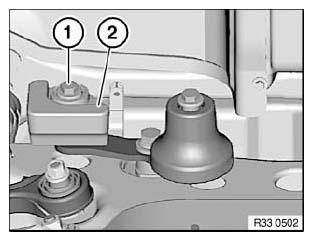

Variant B:
Release bolt (1) and remove vibration damper (2).
See Tightening torque 33 17 3AZ in 33 17 REAR AXLE DIFFERENTIAL MOUNTINGS .

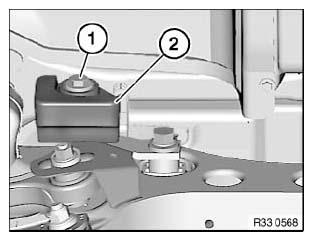

Variant C:
NOTE:
Removal depicted on left vibration damper.
Release bolt (1) and remove vibration damper (2).
See Tightening torque 33 17 3AZ in 33 17 REAR AXLE DIFFERENTIAL MOUNTINGS .
