23 14... Replacing Reversing Light Switch
WARNING: This page is about a different car, the 2010 BMW 135i, 2009 BMW 135i, and 2008 BMW 135i. However, it is still accessible from the selected car via links, so may be relevant.
Necessary preliminary tasks:
- Remove rear underbody protection. See REMOVING AND INSTALLING/REPLACING REAR UNDERBODY PROTECTION .
GS6-17DG/BG and GS6-37DG/BG transmissions only.
Disconnect plug connection (1) on reverse gear switch.
Remove reverse gear switch.
Tightening torque 23 14 1AZ .
NOTE:
Illustration similar

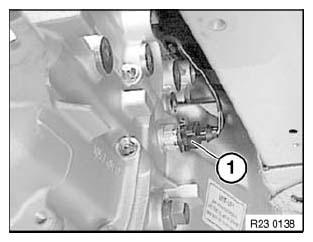

Fig 1: Identifying Plug Connection On Reverse Gear Switch (GS6-17DG/BG And GS6-37DG/BG Transmission)
GS6-53DG/BG transmission only
Disconnect plug connection (1) on reverse gear switch.
Remove reverse gear switch.
Tightening torque 23 14 1AZ .
NOTE:
Illustration similar
