33 10... Removing and installing/replacing vibration damper

WARNING: This page is about a different car, the 2010 BMW 135i, 2009 BMW 135i, and 2008 BMW 135i. However, it is still accessible from the selected car via links, so may be relevant.

Variant A:

Release screw (1).

Tightening torque 33 17 2AZ, see 33 17 REAR AXLE DIFFERENTIAL MOUNTINGS

Remove vibration damper (2).

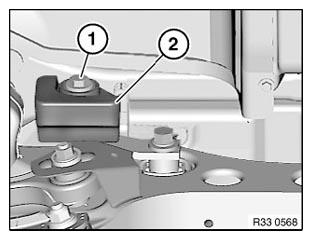

Fig 1: Identifying Vibration Damper With Mounting Screw (Variant A)

Courtesy of BMW OF NORTH AMERICA, INC.

Variant B:

Release bolt (1) and remove vibration damper (2).

Tightening torque 33 17 3AZ, see 33 17 REAR AXLE DIFFERENTIAL MOUNTINGS

Fig 2: Identifying Vibration Damper With Mounting Bolt (Variant B)

Courtesy of BMW OF NORTH AMERICA, INC.

Variant C:

NOTE: Removal depicted on left vibration damper.

Release bolt (1) and remove vibration damper (2).

Tightening torque 33 17 3AZ, see 33 17 REAR AXLE DIFFERENTIAL MOUNTINGS

Variant D (E93):

Fig 3: Identifying Vibration Damper With Mounting Bolt (Variant C)

Courtesy of BMW OF NORTH AMERICA, INC.

Remove left and right tension struts (on rear axle).

Release bolts (1) and remove vibration damper (2).

Tightening torque 33 33 3AZ, see 33 33 REAR AXLE SUSPENSION

Fig 4: Identifying Vibration Damper With Mounting Bolt - Variant D (E93)

Courtesy of BMW OF NORTH AMERICA, INC.
