64 11 991 Removing And Installing/Replacing Sensor For Automatic Recirculated Air Control
WARNING: This page is about a different car, the 2010 BMW 135i, 2009 BMW 135i, and 2008 BMW 135i. However, it is still accessible from the selected car via links, so may be relevant.

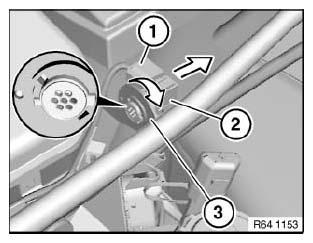

Unfasten plug connection (1) and disconnect.
Turn sensor for automatic recirculated air control (2) upwards and in direction of arrow and remove from mounting (3).
Installation:
Make sure sensor for automatic recirculated air control (2) is correctly seated in mounting (3).
