86 10... Removing brake shoes: Notes

WARNING: This page does not describe the selected car, but rather 31 other vehicles, including the 2015 BMW Alpina B7L, 2015 BMW Alpina B7, 2015 BMW 750i, 2015 BMW 750Li, and 2015 BMW 740i. However, it is still accessible from the selected car via links, so may be relevant.

The wheels of the multi-trailers must be able to rotate freely. Adjust and check brake system after installing brake shoes.

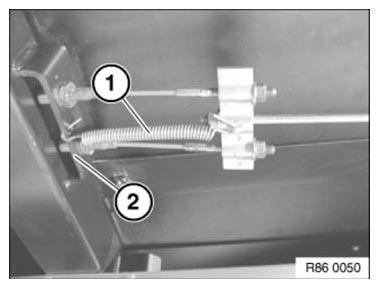

Unhook tension spring (1) from tension spring mount (2).

Fig 1: Identifying Tension Spring Mount With Tension Spring

Courtesy of BMW OF NORTH AMERICA, INC.

CAUTION: Once nut (1) of pull rod (2) has been released, do not move handbrake lever. Handbrake lever can flick upwards.

Release nut (1) on pull rod (2) and remove hexagon nut. Slide brake compensator (3) towards rear.
