86 21... Removing plug for inside light: Notes

WARNING: This page does not describe the selected car, but rather 31 other vehicles, including the 2015 BMW Alpina B7L, 2015 BMW Alpina B7, 2015 BMW 750i, 2015 BMW 750Li, and 2015 BMW 740i. However, it is still accessible from the selected car via links, so may be relevant.

NOTE: Two different types of plugs are used for the inside light. Both types function in the same way, only their designs are different.

Type 1:

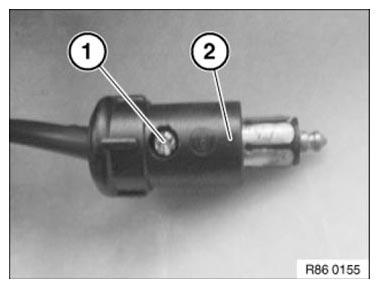

Release screw (1) and separate housing plug (2).

Fig 1: Identifying Housing Plug With Screw

Courtesy of BMW OF NORTH AMERICA, INC.

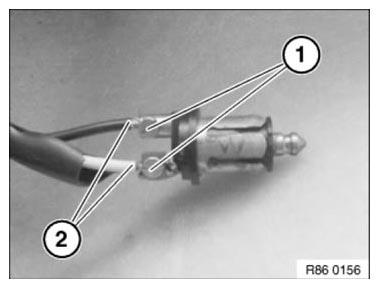

Release screws (1) and disconnect cables (2) from screw clamp.

Fig 2: Identifying Cables And Screws

Courtesy of BMW OF NORTH AMERICA, INC.

Type 2:

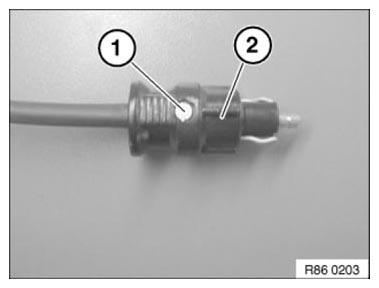

Release screw (1) and separate housing plug (2).

Fig 3: Identifying Housing Plug And Screw

Courtesy of BMW OF NORTH AMERICA, INC.

Remove contact parts (1+2).
