41 00... Stamping Vehicle Identification Number (Needle Stamping Unit): Notes

WARNING: This page is about a different car, the 2013 BMW 550i GT, 2012 BMW 550i GT, 2011 BMW 550i GT, and 2010 BMW 550i GT. However, it is still accessible from the selected car via links, so may be relevant.

Read and comply with GENERAL INFORMATION .

The needle stamping system 360 - VRM - BMW is required to stamp the vehicle identification number.

Order number: 81 43 2 155 736

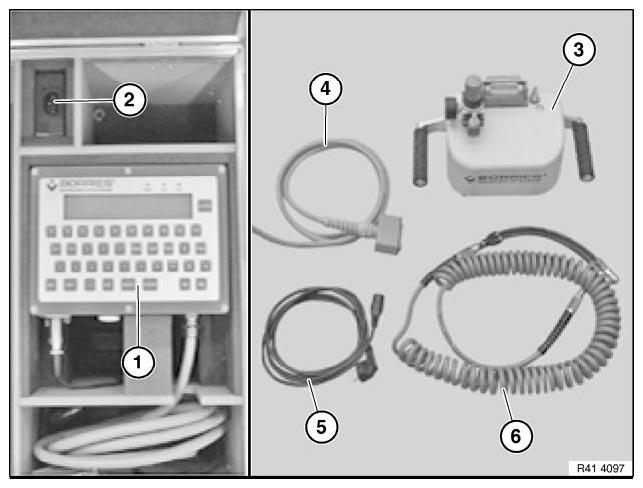

Fig 1: Identifying Display, Mains Adapter, Needle Stamping Unit, Compressed-Air Hose, Connecting And Power Cable

Courtesy of BMW OF NORTH AMERICA, INC.

The needle stamping system 360 tool set comprises:

(1) Display
(2) Mains adapter
(3) Needle stamping unit
(4) Connecting cable
(5) Power cable
(6) Compressed-air hose

NOTE: A compressed-air connection is also required.

Operating pressure approx. 6 bar
Use only dry, oil-free air
