CIRCUIT PROTECTION DEVICES
| Component | Component Location |
|---|---|
| ASC Diode | In front power distribution box. |
| Auxiliary Fuse Box | Under left side of dash. |
| E-Box (2.5L) | On right rear of engine compartment. |
| E-Box (2.8L) | On right rear of engine compartment. |
| E-Box (3.2L) | On right rear of engine compartment. |
| Front Power Distribution Box | On left rear corner of engine compartment. |
| Fuse Holder | Behind front of center console. |
| Fuse Holder | In right side of luggage compartment. |
| Fuse Holder in E-Box | Right rear of engine compartment in E-box. |

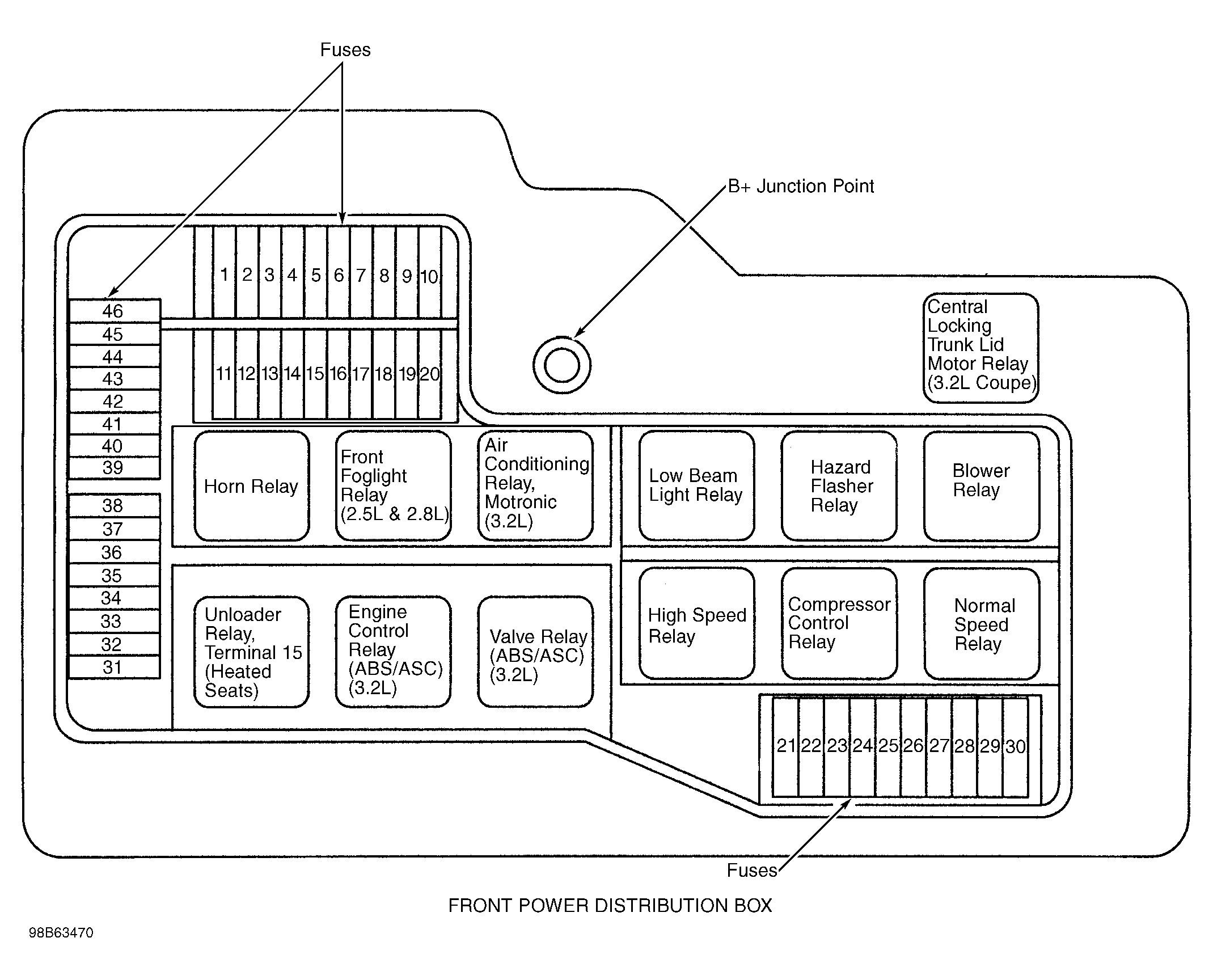

| Fuses | In front power distribution box. See Figure . |
| Fusible Link | On right side of luggage compartment. |
| Relay Panel | Under left side of dash. |
