24 34... Notes on Mechatronics (GA6HP26Z) (N63 engine, model years 2009 through 2012)

WARNING: This page does not describe the selected car, but rather 13 other vehicles, including the 2015 BMW Alpina B7L xDrive, 2015 BMW Alpina B7 xDrive, 2015 BMW 750i xDrive, 2015 BMW 750Li xDrive, and 2015 BMW 740Li xDrive. However, it is still accessible from the selected car via links, so may be relevant.

Special tools required:

IMPORTANT: After completing work:
  • Load specific data version with DIS
  • Check TRANSMISSION OIL LEVEL .

    Use only approved TRANSMISSION OIL .

    Failure to comply with this requirement will result in serious damage to the automatic transmission!

IMPORTANT: Read and comply with notes on PROTECTION AGAINST ELECTROSTATIC DISCHARGE (ESD PROTECTION) .

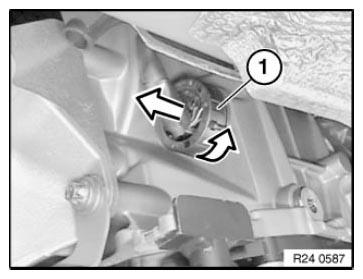

Unscrew plug (1) and disconnect.

Fig 1: Disconnecting Plug
G08488002Courtesy of BMW OF NORTH AMERICA, INC.

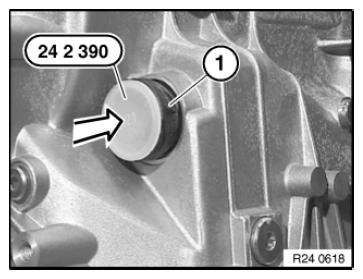

Insert special tool 24 2 390 in sealing sleeve (1).

Fig 2: Inserting Special Tool (24 2 390) In Sealing Sleeve
G08488058Courtesy of BMW OF NORTH AMERICA, INC.
