31 00... Notes on repairing threads: Procedure

WARNING: This page is about a different car, the 2013 BMW X5 M, 2012 BMW X5 M, 2011 BMW X5 M, and 2010 BMW X5 M. However, it is still accessible from the selected car via links, so may be relevant.

Create a clean core hole; if necessary, drill out screw remnants

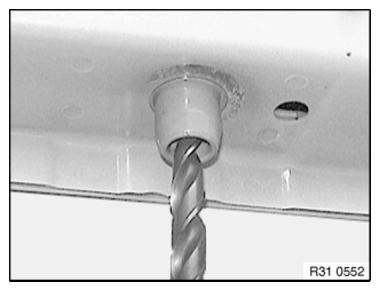

Fig 1: Drilling Clean Hole Core For Helicoil Thread Insert
Courtesy of BMW OF NORTH AMERICA, INC.
Create locating thread for Helicoil thread insert

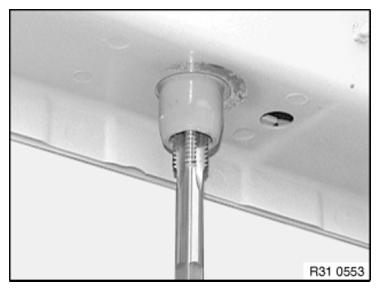

Fig 2: Creating Locating Thread For Helicoil Thread Insert
Courtesy of BMW OF NORTH AMERICA, INC.
Pick out Helicoil thread insert in accordance with the TABLE and screw into the locating thread until flush with the original thread

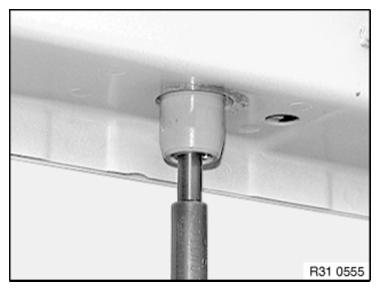

Fig 3: Inserting Helicoil Thread Into Locating Thread
Courtesy of BMW OF NORTH AMERICA, INC.
Break drive pin and remove

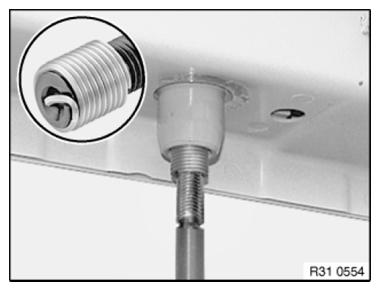

Fig 4: Removing Drive Pin
Courtesy of BMW OF NORTH AMERICA, INC.
