52 26... Removing and installing outer fold trim

WARNING: This page is about a different car, the 2013 BMW X5 M, 2012 BMW X5 M, 2011 BMW X5 M, and 2010 BMW X5 M. However, it is still accessible from the selected car via links, so may be relevant.

Necessary preliminary tasks

Remover INNER FOLD TRIM .
Remove outer FOLLOWER TRIM .

Trim, fold, outer (pivot bearing):

Release screw (2).

Tightening torque: 52 26 25AZ .

Pull off release handle (1).

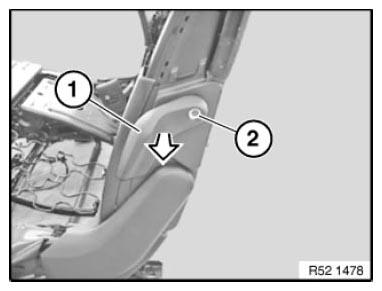

Fig 1: Pulling Off Release Handle

G08529834

Courtesy of BMW OF NORTH AMERICA, INC.

Release screw.

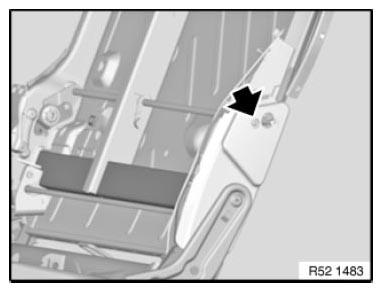

Fig 2: Locating Seat Backrest Frame

G08529835

Courtesy of BMW OF NORTH AMERICA, INC.

Only for seat backrest frame, left (60 %):

Push on locking clip (1).

Pull off ball socket.

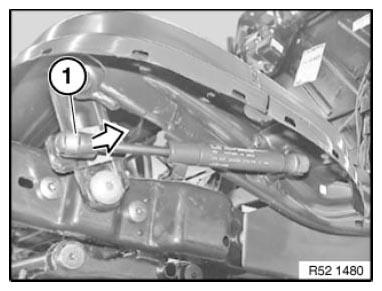

Fig 3: Pushing On Locking Clip

G08529836

Courtesy of BMW OF NORTH AMERICA, INC.

Installation:

Gas-filled strut (1) is under tension.

Lever ball socket with screwdriver on pin.

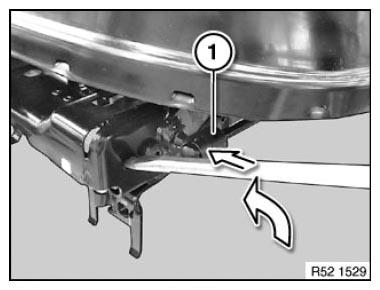

Fig 4: Removing Ball Socket Using Screwdriver

G08529837

Courtesy of BMW OF NORTH AMERICA, INC.

Release screw (1).

Tightening torque: 52 26 27AZ .

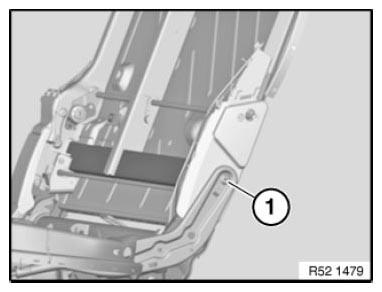

Fig 5: Identifying Seat Backrest Frame Screw

G08529838

Courtesy of BMW OF NORTH AMERICA, INC.

Carefully tighten follower (2) on seat cushion frame.

Feed trim (1) out of seat mechanism.

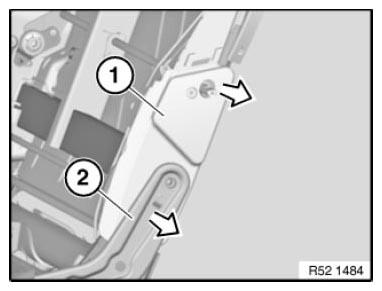

Fig 6: Feeding Trim Out Of Seat Mechanism

G08529839
