52 26... Removing and installing/replacing CF microswitch

WARNING: This page is about a different car, the 2013 BMW X5 M, 2012 BMW X5 M, 2011 BMW X5 M, and 2010 BMW X5 M. However, it is still accessible from the selected car via links, so may be relevant.

Necessary preliminary tasks

Remove LEFT REAR SEAT .

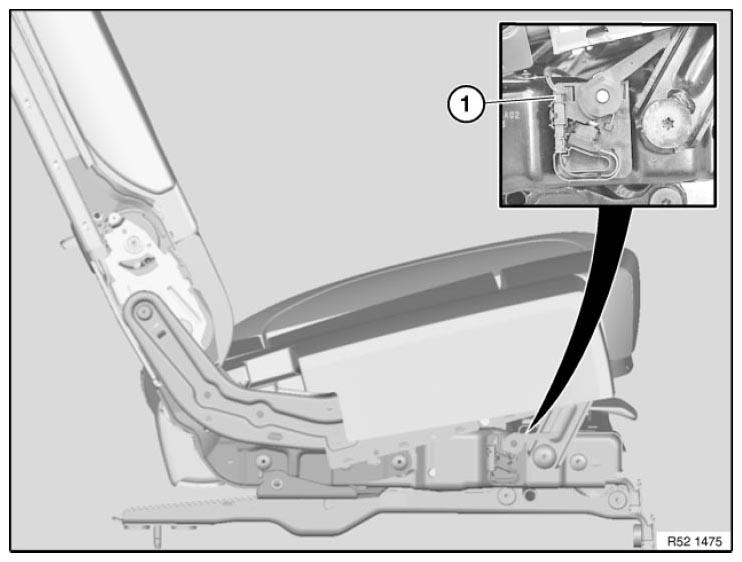

Fig 1: Identifying Plug Connection
Courtesy of BMW OF NORTH AMERICA, INC.

Unfasten plug connection (1) and disconnect.

Unlock microswitch (1) with screwdriver (2) and remove towards top.

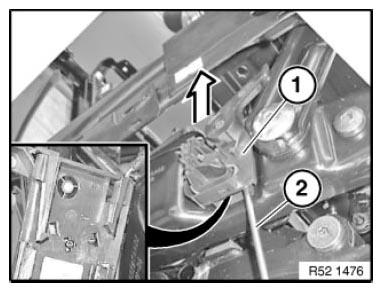

Fig 2: Removing Microswitch Using Screwdriver

Courtesy of BMW OF NORTH AMERICA, INC.
