31 50... Check/change front axle differential oil

WARNING: This page is about a different car, the 2011 BMW 750xi, 2011 BMW 750Lxi, 2010 BMW 750xi, and 2010 BMW 750Lxi. However, it is still accessible from the selected car via links, so may be relevant.

IMPORTANT: Use only the APPROVED OIL in the front axle differential.
Failure to comply with this requirement will result in serious damage to the front axle differential!

NOTE: Only change oil when front axle differential is at normal operating temperature.

Checking, correcting front axle differential oil level

Necessary preliminary tasks:

Remove FRONT WHEEL .
Remove steering box COVER on left.

Undo oil filler plug (1).

Tightening torque 31 50 2AZ .

Check front axle differential oil level.

If necessary, top up the front axle differential oil to the lower edge of the opening for oil filler plug (1).

Installation note:

Replace the oil filler plug.

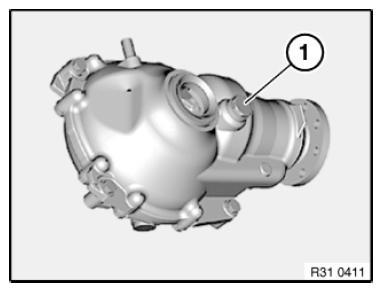

Fig 1: Identifying Oil Filler Plug

Courtesy of BMW OF NORTH AMERICA, INC.

Changing front axle differential oil

Necessary preliminary tasks:

Remove FRONT WHEEL .
Remove steering box COVER on left.
Remove STIFFENING PLATE

Place oil collecting apparatus underneath.

Remove oil drain plug (1).

Tightening torque 31 50 2AZ .

Drain front axle differential oil.

Screw in oil drain plug (1) and tighten.

Undo oil filler plug (2).

Tightening torque 31 50 2AZ .

Pour in front axle differential oil up to lower edge of opening for oil filler plug (2).

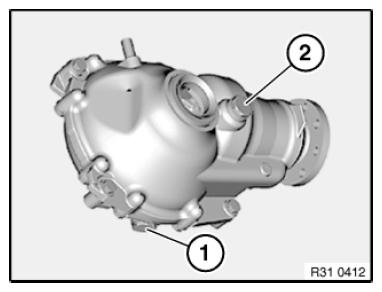

Fig 2: Identifying Oil Drain Plugs

Courtesy of BMW OF NORTH AMERICA, INC.

Installation note:

Replace the oil drain plug and oil filler plug.
