17 11... Clean the radiator ribs

Necessary preliminary tasks:

• Remove FAN COWL .

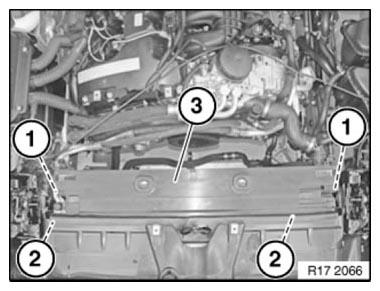

Release screws (1) on left and right from cover (3).

Tightening torque 17 10 1AZ .

Release screws (2) behind sealing lip.

Tightening torque 17 10 1AZ .

Lift out cover (3).

Fig 1: Identifying Radiator Cover With Mounting Screws

Courtesy of BMW OF NORTH AMERICA, INC.

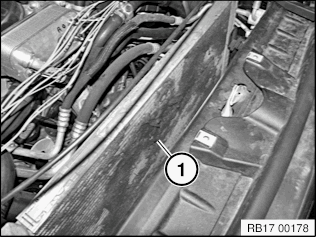

Check radiator (1) for dirt contamination.

Fig 2: Identifying Radiator

Courtesy of BMW OF NORTH AMERICA, INC.

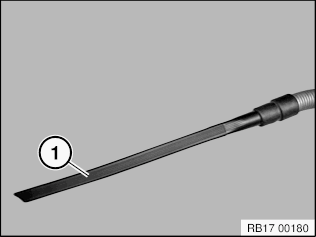

To clean the radiator use a standard narrow vacuum-cleaner attachment (1) with a length of approx. 600 mm.

Fig 3: Identifying Vacuum Cleaner Attachment

Courtesy of BMW OF NORTH AMERICA, INC.

Ensure that the cooler fins are not damaged.

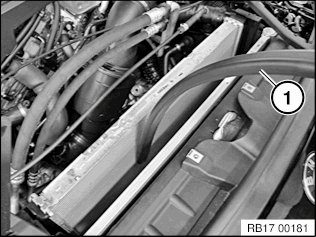

Vacuum dirt off the radiator using a vacuum cleaner with a narrow attachment (1).

Fig 4: Vacuuming Dirt Off Radiator Using Vacuum Cleaner With Narrow Attachment

Courtesy of BMW OF NORTH AMERICA, INC.

Only if transmission oil cooler or power steering cooler fitted:

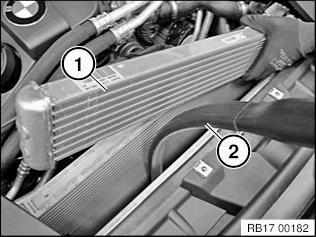

Lift up transmission oil cooler/power steering cooler (1) slightly.

Vacuum dirt off the radiator using a vacuum cleaner with a narrow attachment (2).

Fig 5: Lifting Up Oil Cooler Slightly And Vacuuming Dirt Off Radiator

Courtesy of BMW OF NORTH AMERICA, INC.

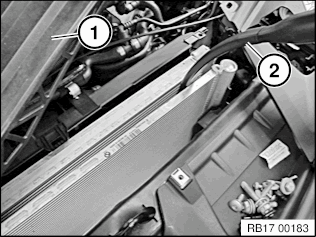

Only partially detach radiator cover (1) at top.

Using a vacuum cleaner with a narrow attachment (2), vacuum off the dirt between the air conditioning condenser and the radiator.

Fig 6: Partially Detaching Radiator Cover At Top For Vacuuming

Courtesy of BMW OF NORTH AMERICA, INC.

Reassemble the vehicle.
