33 00... Rear axle: wheel alignment check must be carried out after the following work
WARNING: This page does not describe the selected car, but rather 7 other vehicles, including the 2016 BMW 760Li, 2015 BMW 760Li, 2014 BMW 760Li, 2013 BMW 760Li, and 2012 BMW 760Li. However, it is still accessible from the selected car via links, so may be relevant.

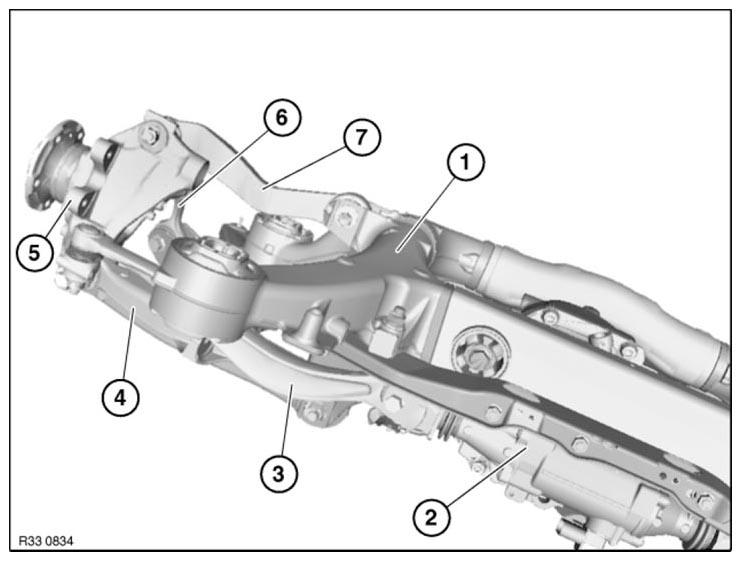

Graphic F01/F02.
A WHEEL ALIGNMENT CHECK must be carried out after the following work:
- Release the following screw connection:
- Swinging arm, front/rear, to rear axle support
- Swinging arm to integral link / wheel carrier
- Guide arm to rear axle support / HSR unit
- Wishbone to rear axle support / wheel carrier
- Replacement of following parts:
- = Rear axle support
- = HSR actuator
- = Toe arm
- = Swinging arm
- = Wheel carrier
- = Integral link
- = Wishbone
