41 00... Repair solution for straight shank/hexagon rivet nut: Notes

WARNING: This page does not describe the selected car, but rather 7 other vehicles, including the 2016 BMW 760Li, 2015 BMW 760Li, 2014 BMW 760Li, 2013 BMW 760Li, and 2012 BMW 760Li. However, it is still accessible from the selected car via links, so may be relevant.

Protection measures!

Wear safety goggles
Wear protective gloves

IMPORTANT: To prevent the material from tapering, do not drill out the rivet head.

Carefully spot-drill rivet head with a larger drill bit/countersink

Fig 1: Spot-Drilling Rivet Head Using Larger Drill Bit/Countersink
Courtesy of BMW OF NORTH AMERICA, INC.

IMPORTANT: Avoid paintwork damage
Knock rivet head away with a chisel

Fig 2: Knocking Rivet Head Away Using Chisel
Courtesy of BMW OF NORTH AMERICA, INC.
Drive through rivet shank into cavity, remove if necessary

Fig 3: Identifying Rivet Shank
Courtesy of BMW OF NORTH AMERICA, INC.
Clean component, eliminate paintwork damage if necessary

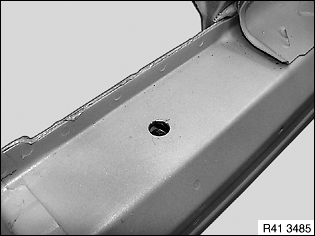

Fig 4: Newly Drilled Hole In Component

If the rivet shank can be removed:

IMPORTANT: To avoid corrosion, stop chips/debris by means of cavity sealing.
Follow INSTRUCTIONS ON CORROSION PROTECTION .
Preserving cavity

Fig 5: Removing Rivet Shank
Courtesy of BMW OF NORTH AMERICA, INC.

If the rivet shank cannot be removed:

WARNING: Risk of injury!
Observe NOTES ON CAVITY FOAM .

IMPORTANT: To avoid corrosion and rattling noises, stop chips/debris and rivet nut shank with cavity foam.
Remove foam remnants with isohexane (benzine).

Fig 6: Removing Rivet Shank
Courtesy of BMW OF NORTH AMERICA, INC.

5. Stop rivet shank by means of specific foaming
6. Set rivet nut with hand rivet gun
NOTE: Fit rivet nut as quickly as possibly, ideally before the cavity foam hardens.
