34 00... Checking brake discs

WARNING: This page does not describe the selected car, but rather 7 other vehicles, including the 2016 BMW 760Li, 2015 BMW 760Li, 2014 BMW 760Li, 2013 BMW 760Li, and 2012 BMW 760Li. However, it is still accessible from the selected car via links, so may be relevant.

Necessary preliminary tasks:

Remove WHEELS .

Checking thickness difference:

Measure thickness difference within brake surfaces at 8 point (spread over the circumference) with a micrometer gauge
Compare measurement result with setpoint value. See FRONT BRAKE or REAR BRAKE .

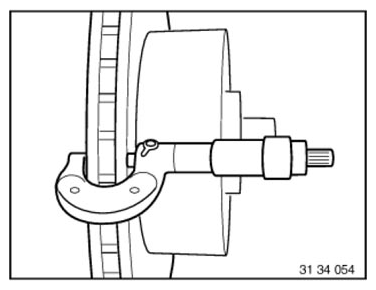

Fig 1: Measuring Thickness Difference Within Brake Surfaces Using Micrometer Gauge

Courtesy of BMW OF NORTH AMERICA, INC.

Check minimum brake disc thickness:

Position special tool 34 1 280 at three measuring points in area (1) and measure.
Compare measurement result and lowest value with setpoint value. See FRONT BRAKE or REAR BRAKE .

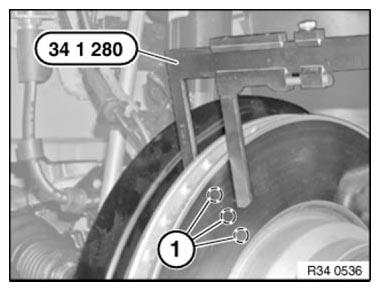

Fig 2: Checking Minimum Brake Disc Thickness
Courtesy of BMW OF NORTH AMERICA, INC.
