31 00... Procedure for repairing threads: Procedure

WARNING: This page does not describe the selected car, but rather 7 other vehicles, including the 2016 BMW 760Li, 2015 BMW 760Li, 2014 BMW 760Li, 2013 BMW 760Li, and 2012 BMW 760Li. However, it is still accessible from the selected car via links, so may be relevant.

Create a clean core hole; if necessary, drill out screw remnants

Fig 1: Creating Core Hole Using Tool
Courtesy of BMW OF NORTH AMERICA, INC.
Create locating thread for Helicoil thread insert

Fig 2: Creating Locating Thread
Courtesy of BMW OF NORTH AMERICA, INC.
Pick out Helicoil thread insert in accordance with the TABLE and screw into the locating thread until flush with the original thread

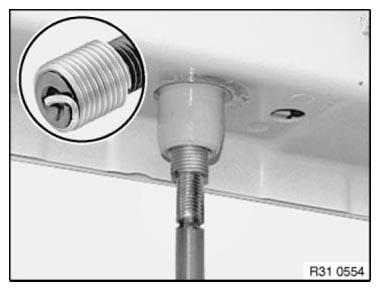

Fig 3: Picking Out Helicoil Thread Insert
Courtesy of BMW OF NORTH AMERICA, INC.
Break drive pin and remove

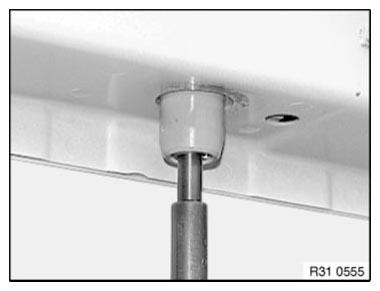

Fig 4: Removing Break Drive Pin
