31 11 001 Replacing front axle support: Notes
WARNING: This page does not describe the selected car, but rather 7 other vehicles, including the 2016 BMW 760Li, 2015 BMW 760Li, 2014 BMW 760Li, 2013 BMW 760Li, and 2012 BMW 760Li. However, it is still accessible from the selected car via links, so may be relevant.
IMPORTANT:
Before removing front axle support:
In order to avoid damage to vehicle hoist, perform weight compensation on vehicle.
Load spring strut domes with sand bags.
WARNING:
Secure engine in installation position with special tool to prevent it from falling down.
Necessary preliminary tasks:
- Lower FRONT AXLE SUPPORT
- Remove BOTH LOWER WISHBONES FROM FRONT AXLE SUPPORT
- Remove BOTH TRAILING LINKS FROM FRONT AXLE SUPPORT
- Remove HYDRAULIC STEERING GEAR
Graphic shows: F01
Remove both engine mounts from front axle support
Take front axle support down and set down on a suitable surface.
Installation note:
Use previous front axle support as a template for modifying or replacing small parts.
Installation note:
Only on F01/02 vehicles with ARS:
Adapt holder of ARS hydraulic line if required.

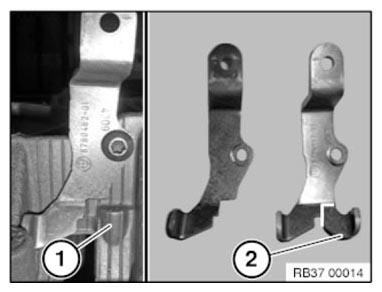

Due to a modification on axle support (1), if necessary cut off tab (2) at the mark!
