31 00... Notes on repairing threads: Notes

WARNING: This page does not describe the selected car, but rather 21 other vehicles, including the 2017 BMW 550i GT xDrive, 2017 BMW 535i GT xDrive, 2017 BMW 535i GT, 2016 BMW 550i GT xDrive, and 2016 BMW 535i GT xDrive. However, it is still accessible from the selected car via links, so may be relevant.

IMPORTANT: Install Helicoil thread inserts so that they are flush with the original thread.

NOTE: Damaged threads on the engine support may be repaired with Helicoil thread inserts. Follow the procedure described in the example.

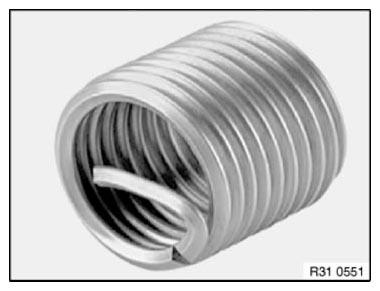

Fig 1: Identifying Damaged Thread On Engine Support

Courtesy of BMW OF NORTH AMERICA, INC.

Procedure

Create a clean core hole; if necessary, drill out screw remnants

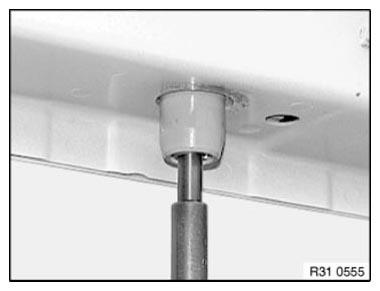

Fig 2: Drilling Out Screw Remnants
Courtesy of BMW OF NORTH AMERICA, INC.
Create locating thread for Helicoil thread insert

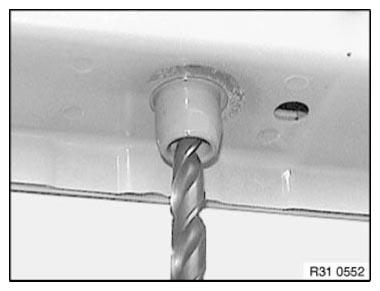

Fig 3: Drilling Pilot Hole For Helicoil Thread Insert
Courtesy of BMW OF NORTH AMERICA, INC.
Pick out Helicoil thread insert in accordance with the TABLE and screw into the locating thread until flush with the original thread

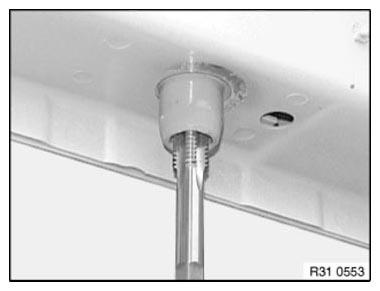

Fig 4: Screwing Helicoil Thread Insert Into Pilot Hole
Courtesy of BMW OF NORTH AMERICA, INC.
Break drive pin and remove

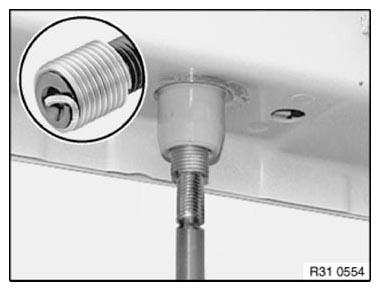

Fig 5: Removing Drive Pin
Courtesy of BMW OF NORTH AMERICA, INC.
