61 13... Unlocking and disconnecting different plug connections

WARNING: This page does not describe the selected car, but rather 21 other vehicles, including the 2017 BMW 550i GT xDrive, 2017 BMW 535i GT xDrive, 2017 BMW 535i GT, 2016 BMW 550i GT xDrive, and 2016 BMW 535i GT xDrive. However, it is still accessible from the selected car via links, so may be relevant.

NOTE: Examples of unlocking and disconnecting different plug connections.

Press lock and open clamp in direction of arrow.

Disconnect plug connection.

Fig 1: Disconnecting Plug Connection

G04727424

Courtesy of BMW OF NORTH AMERICA, INC.

Press lock and open clamp in direction of arrow.

Disconnect plug connection.

Fig 2: Disconnecting Plug Connection

G04727425

Courtesy of BMW OF NORTH AMERICA, INC.

Open clip in direction of arrow and disconnect plug connection in direction of arrow.

Fig 3: Pressing Plug Connection Lock

G04727426

Courtesy of BMW OF NORTH AMERICA, INC.

Press lock and disconnect plug connection in direction of arrow.

Fig 4: Disconnecting Plug Connection

G04727427

Courtesy of BMW OF NORTH AMERICA, INC.

Press lock and disconnect plug connection in direction of arrow.

Fig 5: Disconnecting Plug Connection

G04727428

Courtesy of BMW OF NORTH AMERICA, INC.

Press lock and disconnect plug connection in direction of arrow.

Fig 6: Pressing Plug Connection Lock

G04727429

Courtesy of BMW OF NORTH AMERICA, INC.

Press lock and disconnect plug connection in direction of arrow.

Fig 7: Disconnecting Plug Connection

G04727430

Courtesy of BMW OF NORTH AMERICA, INC.

Press lock and disconnect plug connection in direction of arrow.

Fig 8: Pressing Plug Connection Lock

G04727431

Courtesy of BMW OF NORTH AMERICA, INC.

Press lock and disconnect plug connection in direction of arrow.

Fig 9: Disconnecting Plug Connection

G04727432

Courtesy of BMW OF NORTH AMERICA, INC.

Press the lock and detach plug connection.

Fig 10: Pressing Plug Connection Lock

G08509523

Courtesy of BMW OF NORTH AMERICA, INC.

Press the lock and detach plug connection.

Fig 11: Pressing Plug Connection Lock

G08509524

Courtesy of BMW OF NORTH AMERICA, INC.

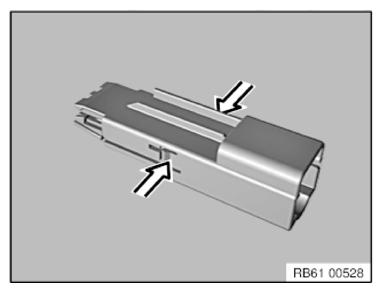

Press the lock on both sides and detach plug connection.

Fig 12: Detaching Plug Connection

G09880967

Courtesy of BMW OF NORTH AMERICA, INC.

Press the lock and detach plug connection.

Fig 13: Detaching Plug Connection

G08509526

Courtesy of BMW OF NORTH AMERICA, INC.
