61 31... Remount operating unit for additional seat function (clipped version)

Necessary preliminary tasks:

• Remove OPERATING UNIT  of additional seat function

Removal

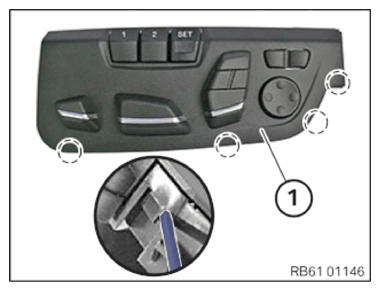

Release all latch mechanisms on the operating unit (1) using screwdriver (3-mm blade).

Fig 1: Removing Operating Unit Latch Mechanisms Using Screwdriver

Courtesy of BMW OF NORTH AMERICA, INC.

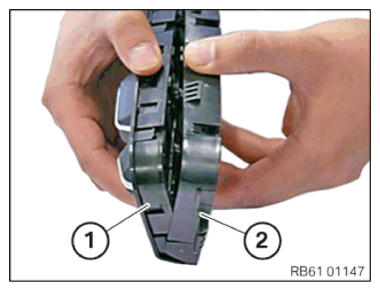

Feed out the operating unit (1) from the rear panel (2).

Fig 2: Removing Operating Unit From Rear Panel

Courtesy of BMW OF NORTH AMERICA, INC.

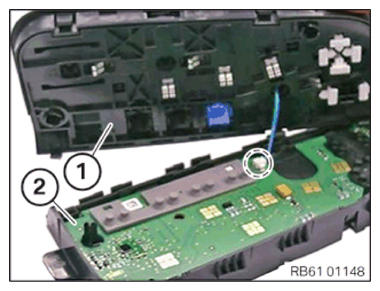

Disconnect the connector from the printed circuit board (2) and remove the operating unit (1).

Fig 3: Identifying Operating Unit And Printed Circuit Board

Courtesy of BMW OF NORTH AMERICA, INC.

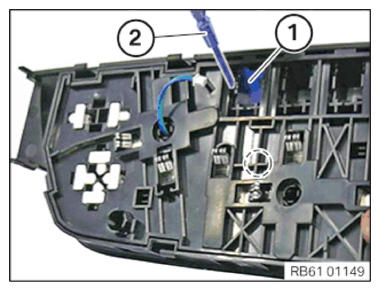

Unclip the button (1) using screwdriver (2) and pull out forwards.

Fig 4: Removing Operating Unit Button Using Screwdriver

Courtesy of BMW OF NORTH AMERICA, INC.

Installation

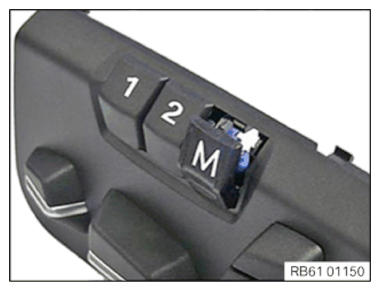

Fit the memory button to the operating unit and press to lock into place.

Fig 5: Identifying Memory Button (Operating Unit)

Courtesy of BMW OF NORTH AMERICA, INC.

Installation note:

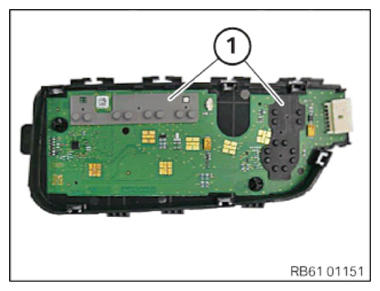

Ensure keypads (1) are seated correctly.

Fig 6: Identifying Operating Unit Keypads

Courtesy of BMW OF NORTH AMERICA, INC.

Disconnect the connector from the printed circuit board (2) and remove the operating unit (1).

Fig 7: Identifying Operating Unit And Printed Circuit Board

Courtesy of BMW OF NORTH AMERICA, INC.

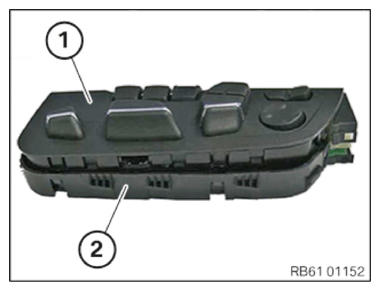

Fit the operating unit (1) to the rear panel (2) and press to lock into place.

Fig 8: Identifying Operating Unit And Rear Panel

Courtesy of BMW OF NORTH AMERICA, INC.

Required follow-up work

• Remove OPERATING UNIT  of additional seat function
