34 00... Checking brake discs

WARNING: This page does not describe the selected car, but rather 21 other vehicles, including the 2017 BMW 550i GT xDrive, 2017 BMW 535i GT xDrive, 2017 BMW 535i GT, 2016 BMW 550i GT xDrive, and 2016 BMW 535i GT xDrive. However, it is still accessible from the selected car via links, so may be relevant.

Special tools required:

34 1 280

Necessary preliminary tasks:

Remove WHEELS .

Checking thickness difference:

Measure thickness difference within brake surfaces at 8 point (spread over the circumference) with a micrometer gauge
Compare measurement result with setpoint value. See FRONT BRAKE or REAR BRAKE .

Fig 1: Checking Brake Discs Thickness
Courtesy of BMW OF NORTH AMERICA, INC.

Check minimum brake disc thickness:

Position special tool 34 1 280 at three measuring points in area (1) and measure.
Compare measurement result and lowest value with setpoint value. See FRONT BRAKE or REAR BRAKE .

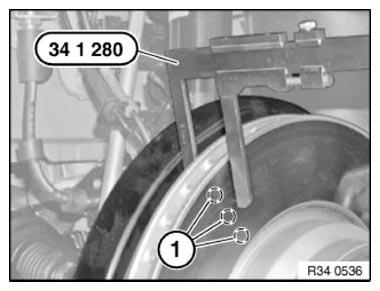

Fig 2: Checking Minimum Brake Disc Thickness
Courtesy of BMW OF NORTH AMERICA, INC.
